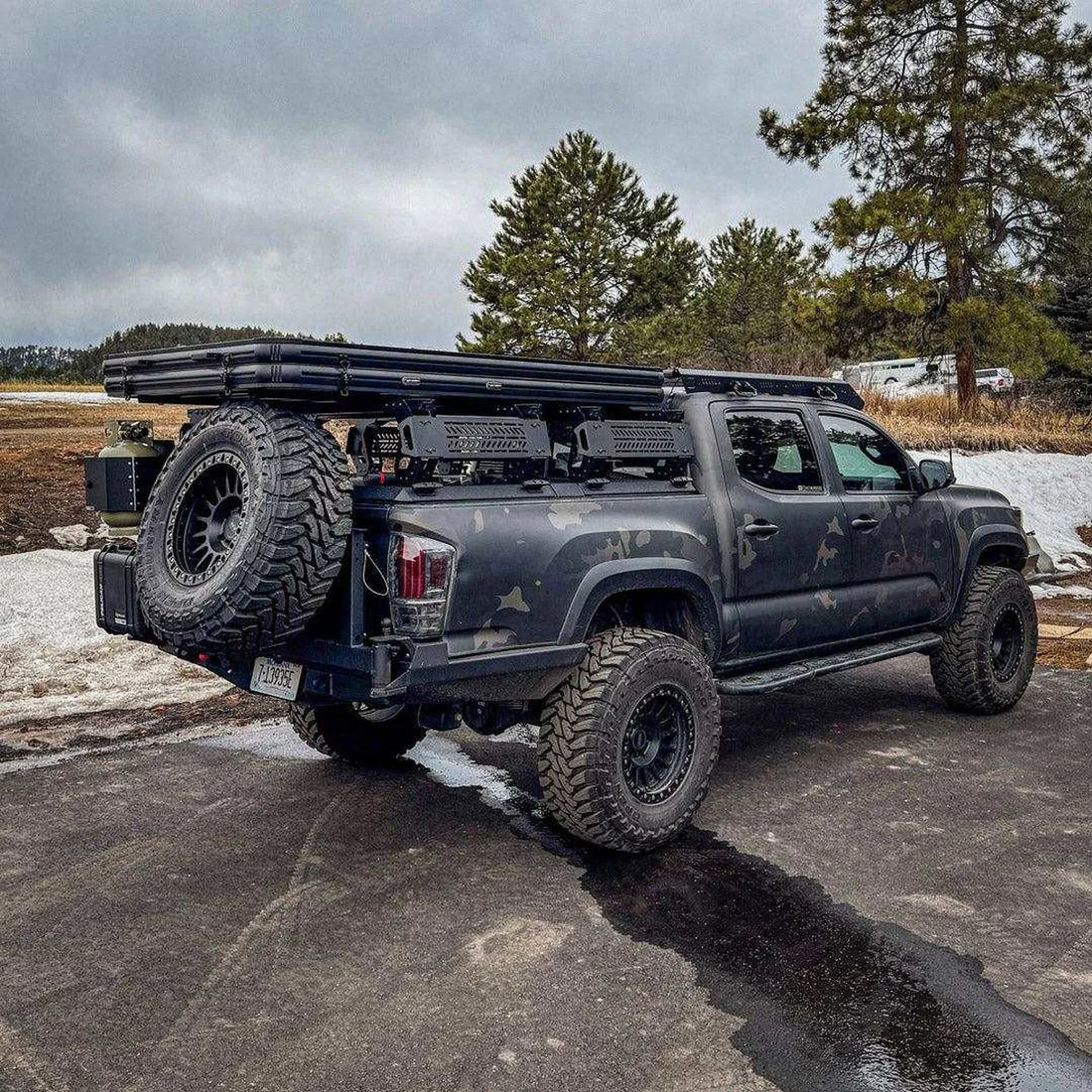

upTOP TRUSS bed rack on DiamondBack cover

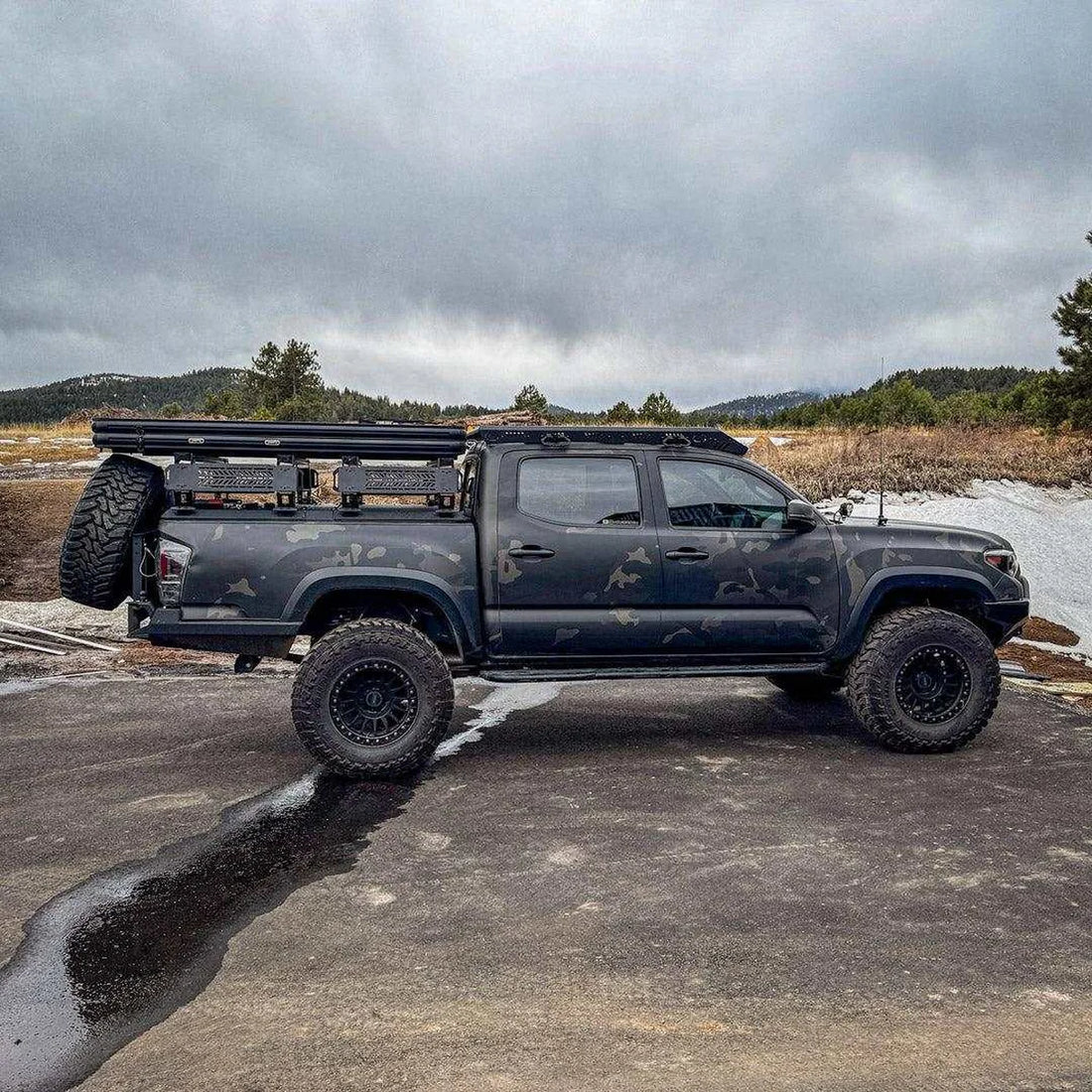

upTOP DiamondBack TRUSS bed rack side view

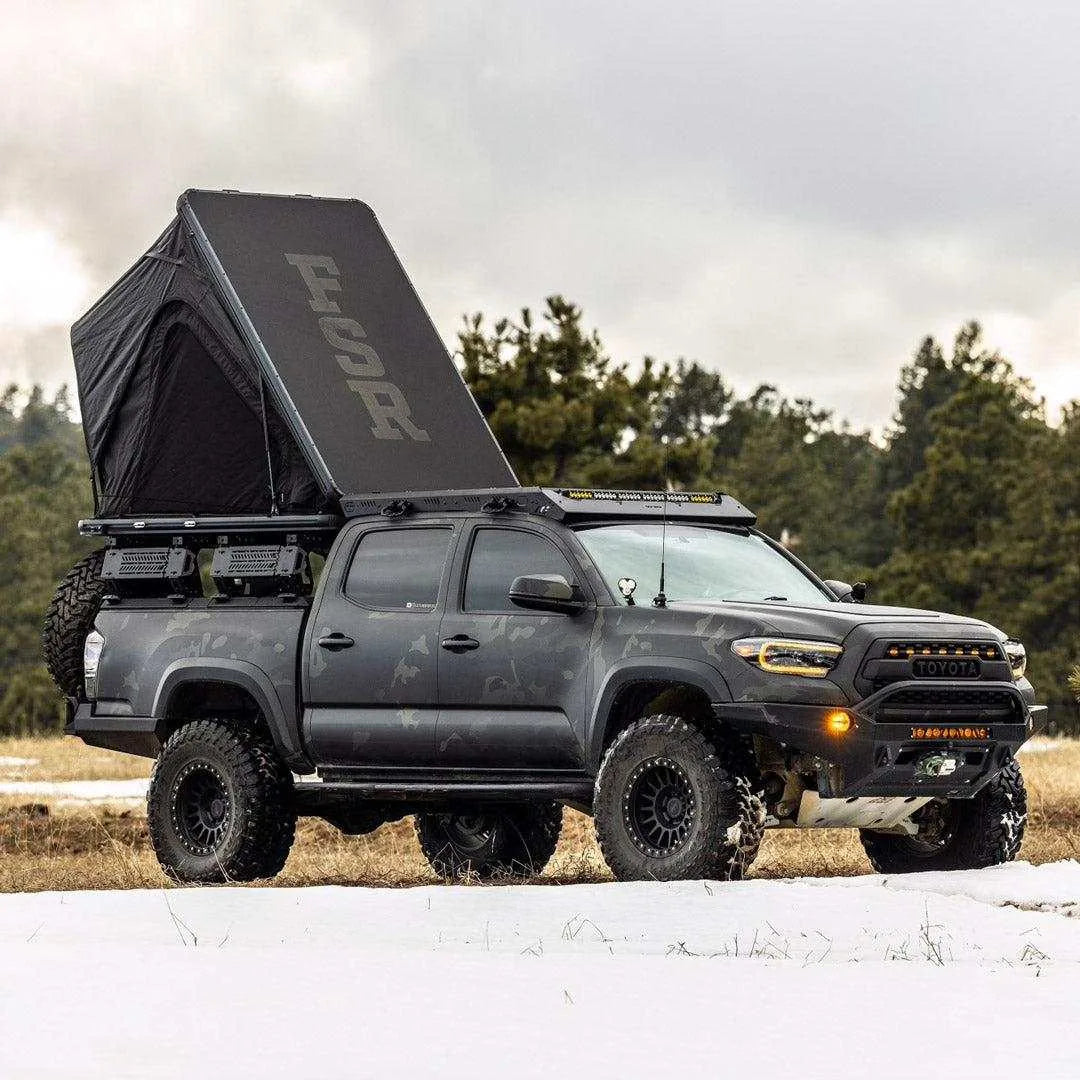

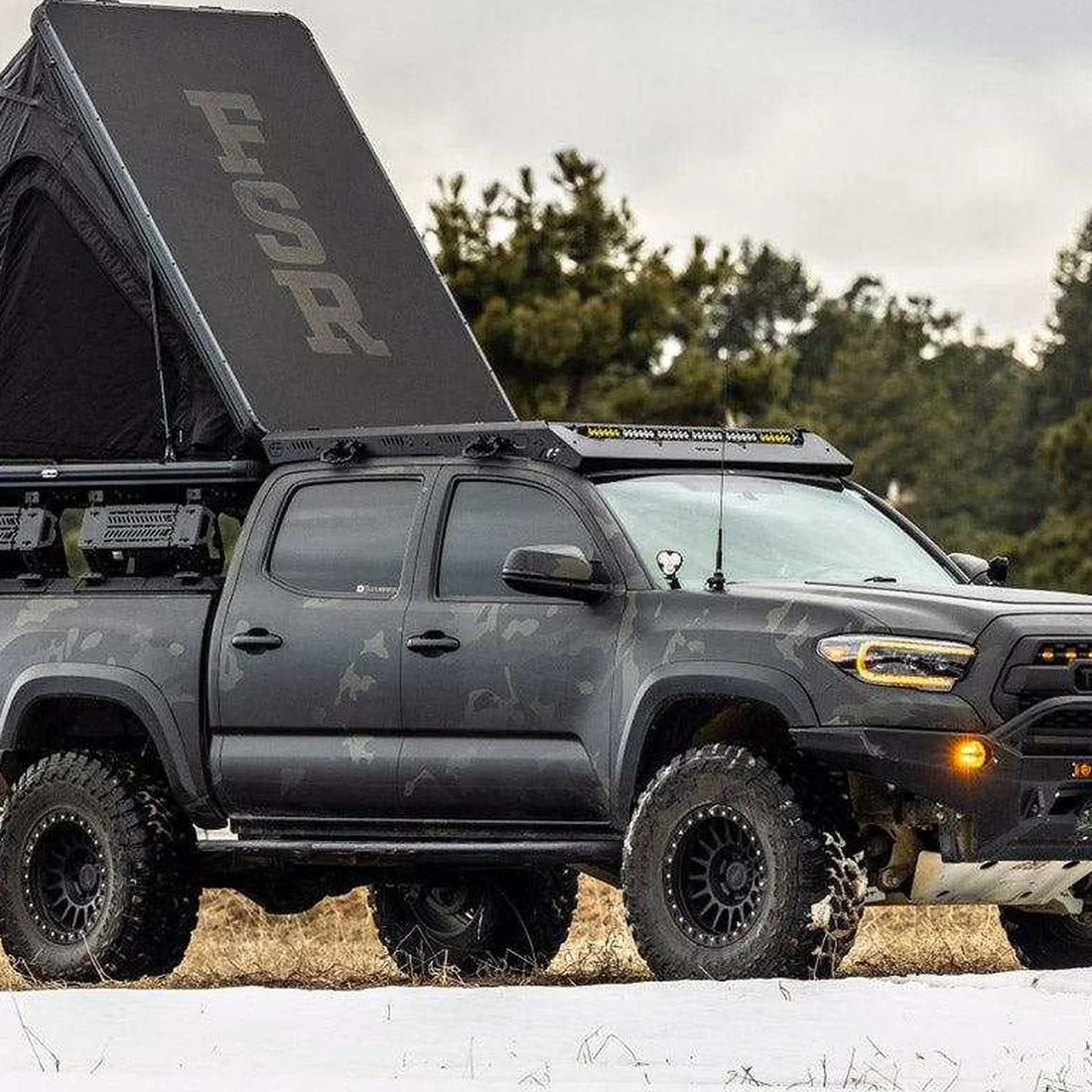

upTOP DiamondBack TRUSS bed rack detail

upTOP TRUSS Bed Rack for DiamondBack Cover

$1,189.15 Sale • Save $209.85
Height Mid (11.75")
Flat $99 freight shipping Shipping, returns and fit

Fit: DiamondBack cover TRUSS. Mid keeps cover fully functional; Full limits open travel about halfway.

Shipping: Ships by freight to the Lower 48 for a flat $99, added at checkout. This item is not part of the $199 free shipping offer.

Returns: 30 days on new items in the original packaging. If the item arrived damaged or defective, we sent the wrong item, or our page listed your vehicle and it does not fit, we cover the return shipping, freight included, and there is no restocking fee. Any other return ships back at your cost.

Freight deliveries: check the shipment and note any damage on the delivery receipt before you sign. After signing, we cannot accept a return for a change of mind or for damage that was not noted. A fit problem from our listing is still covered.

Why buy from us: upTOP TRUSS bed rack for DiamondBack bed covers. Ships by truck freight, with freight shown at checkout. Usually ships in about 4 to 6 weeks. 30-day returns on unused items in original packaging.

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Description

The upTOP Overland TRUSS bed rack for DiamondBack bed covers mounts to your DiamondBack cover and carries rooftop tents, awnings and recovery gear. This upTOP DiamondBack bed rack comes in two fixed heights.

The mid height option, 11.75 in, lets the DiamondBack cover stay fully functional. The full height option, 21.25 in, limits the cover to opening about halfway. The kit includes everything to attach the rack to the cover; if your cover has no cleats, you will need a 5/16 in drill bit.

Why it works

  • Carries rooftop tents, awnings, showers, MAXTRAX, RotoPax, axes and shovels
  • 400 lb dynamic (trail) rating
  • 1,200 lb static (parked) rating, three times the dynamic
  • Modular interlocking side load panels
  • Side load panels are assembled to match your DiamondBack cover's anchor cleat spacing
  • No drilling required for most mounts
  • Mounting kit for your chosen option included
  • Mid height keeps the DiamondBack cover fully functional

Fit

Fits: trucks with a DiamondBack bed cover.

Heights: Mid (11.75 in, 10.25 in under the crossbars) keeps the cover fully usable. Full (21.25 in, 19.75 in under the crossbars) lets the cover open about halfway.

Install: basic tools; a 5/16 in drill bit if the cover has no cleats.

Order now; we check fit against your vehicle after you order and contact you before it ships if anything doesn't match.

Specs

  • Dynamic rating: 400 lb
  • Static rating: 1,200 lb
  • Heights: 11.75 in (Mid) or 21.25 in (Full)

In the box

  • TRUSS bed rack in your chosen height
  • DiamondBack mounting kit

Warranty

upTOP Overland lists a limited lifetime warranty on its parts for as long as the original retail purchaser owns the product.

Shipping and returns

Ships by truck freight to the lower 48 states.

Shipping policy | Refund policy

Shop more truck bed racks

Questions

Should I get the Mid or Full height TRUSS for my DiamondBack cover?
Pick Mid if you want the DiamondBack cover to stay fully functional. Per upTOP Overland, Mid stands 11.75 inches with 10.25 inches under the crossbars. Full stands 21.25 inches with 19.75 inches under the crossbars, for taller loads, but it limits the cover to opening about halfway.
How much weight can the TRUSS rack carry on a DiamondBack cover?
400 lb while driving and 1,200 lb when parked, per upTOP Overland, so the static rating is three times the dynamic one. upTOP notes both ratings assume cargo that is properly secured and evenly distributed. The TRUSS is built from aluminum, with slotted, black powder coated load bars for mounting gear.
Which trucks can run the TRUSS on a DiamondBack cover?
Any truck with a DiamondBack bed cover on upTOP Overland's compatibility list, which covers the Tacoma, Tundra, Gladiator, Frontier, Titan, Ranger, Colorado, F-150, Raptor, F-250 to F-450, Ram 1500 to 3500 and TRX, Silverado 1500 to 3500 and Sierra 1500 to 3500.
What do I need to install the TRUSS on a DiamondBack cover?
Basic hand tools, per upTOP Overland, and the kit includes everything needed to attach the rack to a DiamondBack cover. The rack mounts at the cover's tie down cleat locations, so no drilling is required on most setups. If your DiamondBack has no cleats, upTOP says you will need a 5/16 inch drill bit.
Can I still open my DiamondBack cover with a rooftop tent on the TRUSS?
Not while the tent is mounted. upTOP Overland notes that a rooftop tent spans the length of the TRUSS, so the cover can no longer fold open. Take the tent off when you are not using it and the cover works again. The side armor also carries awnings, showers, MAXTRAX, RotoPax fuel cans, axes and shovels.
