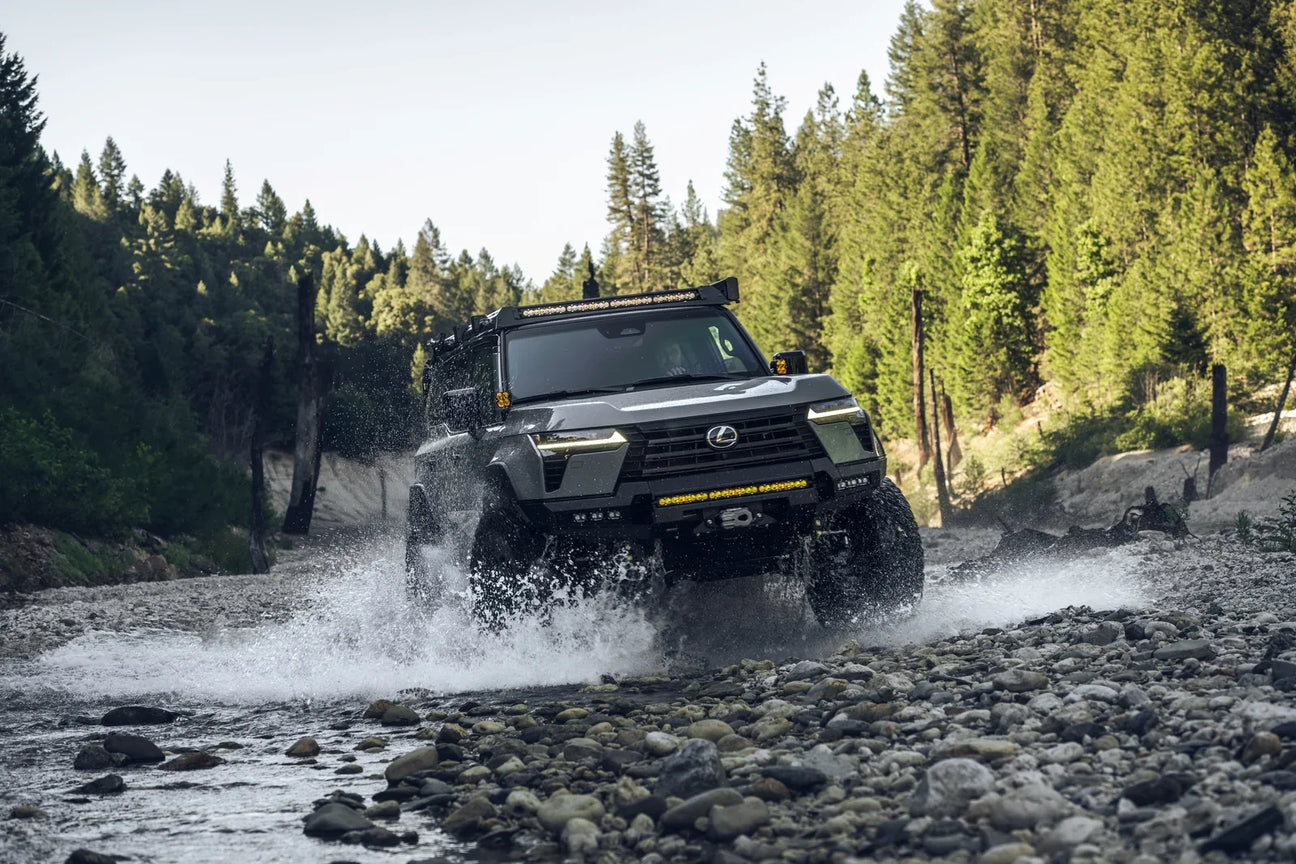

GX550 in mountain riverbed

Lexus GX 550 Build Guide: Roof Racks, Bumpers and Camp Gear Compared (2024-2026)

By Sean Sanders on September 06, 2026

Tan 2024 Lexus GX 550 with a Prinsu Pro roof rack on a display stage

The Lexus GX 550 shows up from the factory ready for a dirt road, which makes it easy to overbuy. Our advice is simple: buy parts that name the GX 550 and list your year, in an order that does not make you pay twice.

The short answer: start with a roof rack and a pair of recovery boards, add cold food and a camp kitchen, choose one front bumper and live with it, and add the rear bumper last. Below we compare the GX 550 roof racks we sell from Prinsu, DV8 and Front Runner, three bumpers from CBI and Rago, and the storage, recovery, fridge and kitchen gear that works with this truck. We use only published specs. Where a maker does not publish a number, we say "not published" instead of guessing. Everything that fits lives in our Lexus GX 550 collection.

If you are shopping a GX 460 or GX 470 part, stop. Different generation, different mounts, different assumptions.

Quick pick: Lexus GX 550 gear by job

Our pick for each job. Prices are in the sections below.
If you want Our pick
A rack with a published load rating Prinsu Pro Lexus GX550 Roof Rack (Standard or 40 inch light bar cutout deflector)
The most T-slot mounting DV8 Spec Series Roof Rack for Land Cruiser 250 and GX 550
A camp table stored under the rack Front Runner Slimline II GX 550 Roof Rack (full or 3/4 length)
Front light bars on the DV8 rack DV8 Spec Series Roof Rack Light Mount
A published winch range CBI Lexus GX550 Front Bumper (Bare Metal or Powder Coat Black)
A hidden winch and the most light mounts Rago GX550 Winch Front Bumper
Rear protection and a higher departure line Rago GX550 Full-Width Rear Bumper
Gear off the cargo floor DV8 Rear Window Pocket MOLLE Panels
Getting unstuck without a winch ActionTrax Recovery Boards (five colors)
Airing back up before the highway ARB CKMA12 Onboard 12V Air Compressor
Cold food for a long weekend Dometic CFX5 45 (cooler only, or with the protective cover)
A fridge plug that stays put Dometic HWK-DC Hardwire Kit
A stainless prep surface that rides on the roof Front Runner Pro Stainless Steel Camp Table Kit
A camp kitchen in one box Chuck Box Camp Kitchen with Sink (Green or Charcoal Black)

GX 550 fit facts: years, trims, roof mounting and roof load

Fit is the whole game on a new truck, so here is what the makers say, in plain words.

What each maker publishes about GX 550 fit.
Fit question What the makers say
Years Every product here lists the 2024 and newer GX 550. Rago and DV8 list 2024 to 2026, CBI lists 2024 to current, and Front Runner lists 2024 to current.
Trims The makers list these parts by model year, not by trim. DV8 lists its rear window MOLLE panels for all GX 550 trims, but does not recommend them with third-row seating because the side curtain airbags could be affected.
Roof mounting Each rack bolts on with its own GX 550 feet or foot rails. Prinsu and Front Runner say no drilling is needed. DV8 calls its install fully bolt-on and says it keeps the factory sunroof and antenna.
Roof load No rack maker publishes the GX 550 roof limit. Prinsu and DV8 point you to the Lexus owner's manual, and Front Runner does not publish a load rating for its GX 550 kits. Subtract the rack itself (Front Runner lists 68.34 lb for its 3/4 kit and 92.59 lb for the full kit, installed), and what is left is for gear.
Land Cruiser 250 The DV8 rack, light mount and MOLLE panels list both the Land Cruiser 250 and the GX 550. The Prinsu Pro GX550 rack is a GX 550 part, not the Land Cruiser 250 rack.
GX 460 and GX 470 Not covered here. Racks and bumpers for the older GX are different parts.

GX 550 roof racks: Prinsu Pro vs DV8 Spec Series vs Front Runner Slimline II

All three racks bolt on and list the 2024 and newer GX 550. The DV8 and the Front Runner 3/4 kit are priced about the same, the Prinsu Pro sits a step above, and the full Front Runner kit is the most expensive. Price narrows it a little, but what you plan to carry up there is the real decision.

Scroll the table sideways to see every column.

Roof rack specs from each maker's own page. "Not published" means the maker does not state it.
Spec Prinsu Pro DV8 Spec Series Front Runner Slimline II (full or 3/4)
Material Powder-coated aluminum, stainless hardware Aluminum side plates, crossbars and rear structure; steel feet and accent panels Black powder-coated T6 aluminum, high-strength steel
Weight not published for the GX550 not published 92.59 lb full, 68.34 lb 3/4 (installed)
Tray length not published not published 85.3 in full, 53.5 in 3/4
Dynamic load 700 lb not published not published
Static load 1,200 lb not published not published
Added height not published for the GX550 not published (DV8 calls it ultra low-profile) not published (the tray is 2 in; foot rail height is not listed)
Light mounting Cutout for 40 inch light bars deflector option Scene and backup light slots, a 40 inch bar on the rear crossbar, and an optional front light mount not published
Sunroof not published for the GX550 Keeps the factory sunroof and antenna (DV8) not published
Crossbars and accessories 6 drop-in points per crossbar 9 crossbars with 80/20 T-slots, M6 hardware; removable rear fins for flush tent or awning mounting Slats and edges take standard 8 mm bolts; full kit has room for one under rack table
Install No drilling Fully bolt-on; DV8 suggests 3 to 4 people and 4 to 5 hours No drilling
Warranty Limited lifetime (Prinsu) not published on the product page Limited lifetime per Dometic kit copy (its product badge says 3 years)
Shipping Truck freight, charge shown at checkout Truck freight, charge shown at checkout Free ground shipping to the Lower 48

Which GX 550 roof rack should you buy?

Buy the Prinsu Pro if a rooftop tent is going up there. It is the only GX 550 rack here with a published load rating, and with a tent up top we would rather trust a number than a feeling. Take the Standard deflector unless a 40 inch light bar is already in the plan. If you cannot decide, this is the one.

Buy the DV8 Spec Series if you tinker. Nine T-slot crossbars, side slots along the full length and removable rear fins give you the most places to bolt things. DV8 does not publish a load rating. Its own page says to "refer to the owner's manual regarding the weight capacity of the vehicle's roof mounting points." Good advice for any rack.

White Lexus GX 550 with a full-length Front Runner Slimline II roof rack, rear three-quarter view

Buy the Front Runner Slimline II if you want a camp table stored under the rack. Front Runner says the full-length GX 550 foot rails leave room for one under rack table at the rear, either the smaller Pro Stainless Steel Prep Table or the larger Pro Stainless Steel Camp Table. Take the full kit (85.3 inch tray) for the most deck and the table, or the 3/4 kit (53.5 inch tray) for a shorter, lighter rack. Front Runner does not list the table for the 3/4 kit.

Both Front Runner racks ship free by ground to the Lower 48. The Prinsu and DV8 racks ship by truck freight, with the charge shown at checkout.

Add-on: front lights for the DV8 rack

The DV8 Spec Series Roof Rack Light Mount bolts to the front of the DV8 rack and runs two 20 inch single-row bars, one 40 inch bar or ten 3 inch pods. DV8 says it fits only its Land Cruiser 250 and GX 550 rack, and lights are not included. Installing it with the rack takes about 30 minutes, per DV8; adding it later takes about an hour and a half.

Planning a rooftop tent?

Add up the tent, the rack and everything strapped to it, then hold it against the roof load in your owner's manual. Tent mounting differs by tent and rack, so confirm fit with us before ordering.

GX 550 bumpers: CBI vs Rago, front and rear

Tan Lexus GX 550 with a Rago winch front bumper and roof-mounted lights on a desert trail

Three bumpers, two jobs. Pick your front bumper once, and save the rear for last.

The CBI GX550 Front Bumper is the lighter choice at 55 to 65 lb, with a published 8,000 to 12,000 lb winch range, a 30 inch light bar mount and no cutting to install. The Rago GX550 Winch Front Bumper hides the winch behind the face, adds two 10 inch side bars to its 30 inch center bar, and opens the wheel wells for bigger tires. Trimming and a riv-nut install are part of that job. The Rago GX550 Full-Width Rear Bumper raises the rear profile for departure angle and takes two Baja Designs S2 or Rigid SR-M lights. It needs trimming too.

Scroll the table sideways to see every column.

Bumper specs from each maker's own page. "Not published" means the maker does not state it.
Spec CBI Front Rago Winch Front Rago Full-Width Rear
Winch 8,000 to 12,000 lb, gusseted mount; not for roller fairleads Concealed mount; capacity not published No winch mount
Weight 55 to 65 lb (CBI) not published not published
Sensors Retains factory sensors (CBI) Retains Lexus Safety System, parking sensors and drive assist (Rago) Retains parking and blind spot sensors (Rago)
Airbag compatibility not published not published not published
Light mounts One 30 inch single-row bar One 30 inch bar and two 10 inch single-row bars Two Baja Designs S2 or Rigid SR-M lights
Recovery points D-ring points, soft shackle compatible Two 1 inch CNC clevis mounts for 3/4 inch D-rings not published
Material and finish Steel; bare metal or 2-stage black texture powder coat Material not published; 2-stage hammer black, made in the USA Material not published; 2-stage hammer black with satin black accents, made in the USA
Install No cutting Trimming and riv nuts required Trimming required
Freight Truck freight, charge shown at checkout Truck freight, flat charge shown at checkout Truck freight, flat charge shown at checkout

Winch rating

Only CBI publishes a winch range for its GX 550 bumper. For the Rago, choose your winch first and confirm fit with us before ordering.

GX 550 recovery: boards and air before bigger steel

Even with GX 550 bumpers on the shelf, the first trail upgrade is still technique plus boards. A pair of ActionTrax Recovery Boards solves more first-year stuck moments than a winch you have not bought yet. They are made in the USA, the sawtooth ends clear sand and mud, and the teeth can be replaced in the field. They do not need vehicle fitment.

The ARB CKMA12 Onboard Air Compressor is what makes airing down worth it. ARB rates it at 100 PSI maximum with a 50% duty cycle. It mounts in the engine bay, behind a seat or another protected spot with a bracket that turns 180 degrees. ARB does not publish a GX 550 mounting location. Confirm fit with us before ordering.

A few habits that pay off every trip:

  • Lower tire pressure for the surface you are on, then air back up before highway speeds.
  • Use rated recovery points only. Never a hitch ball.
  • One spotter, clear hand signals, and nobody standing in line with a strap.

GX 550 storage: get gear off the cargo floor

DV8 rear window pocket MOLLE panel holding a red recovery rope inside the cargo area

The DV8 Rear Window Pocket MOLLE Panels turn the rear side windows into a place for a first aid kit, a radio, straps or a recovery rope, which leaves the cargo floor for the fridge and the bags. DV8 lists them for all 2024 and newer GX 550 trims. They are 3 mm steel, take M6 carriage bolts and MOLLE pouches, and need minor drilling with about an hour and a half to install.

Read this fit note twice: DV8 does not recommend these panels with third-row seating, because the side curtain airbags could be affected. If your GX 550 has a third row, skip them.

GX 550 power and cold food

Dometic CFX5 45 powered cooler sitting in a mountain meadow

The GX 550 cabin is comfortable enough that people underestimate food. Ice melts. A compressor fridge does not, as long as you give it power. The Dometic CFX5 45 is a sensible middle size for two people and a long weekend. Dometic lists about 46 liters, cooling down to -7 F, 12/24V DC and 100-240V AC power, and app control. It is 27.3 inches long including the handles and weighs about 46 lb empty, so measure your cargo floor with the second row where you keep it. Choose the cooler alone or with the protective cover.

For a fridge that rides along every weekend, the Dometic HWK-DC Hardwire Kit gives it a fused 12/24V outlet with Dometic's locking 2-pin plug instead of a loose lighter socket. It is a hardwire kit, so have a qualified installer wire it if vehicle electrics are not your thing.

A habit worth stealing from people who camp a lot: pre-chill the fridge at home the night before, on wall power. You leave with cold food and a battery that has not done any work yet.

GX 550 camp kitchen

Front Runner Pro Stainless Steel Camp Table standing open with its legs folded out

If you chose the full-length Front Runner rack, the Front Runner Pro Stainless Steel Camp Table Kit is the one upgrade we would not skip. Front Runner lists it for the GX 550 full kit's foot rails. The table is 44.5 by 29.5 inches with a stainless top, stands 28.7 inches tall, and slides out from the side or the rear. Side mounting needs 5 open slats and rear mounting needs 7. Front Runner says rear mounting is not suitable for vehicles with a rear roof antenna, so plan on side access if yours has one.

Not running a Front Runner rack? The Chuck Box Camp Kitchen with Sink needs no vehicle fit. It is 24.5 by 18 by 19 inches and 19 lb empty, holds a two-burner stove up to 22 by 13 by 5.5 inches on top, and the lid lifts off to become a wash bin.

Sleeping in a GX 550

This section is short on purpose. Cabin camping in a GX 550 is real, but we do not carry a vehicle mattress with the GX 550 in its fitment yet, and we will not borrow a 4Runner or Land Cruiser pad and assume the wheel wells agree. For now, use a sleeping pad or cot on the folded cargo floor, or a rooftop tent once the rack and roof load math are settled. Not sure what fits? Confirm fit with us before ordering.

GX 550 build order by budget

Shop it all in the Lexus GX 550 collection.

Build tiers, from starter to full build.
Budget What to buy
Starter DV8 Spec Series rack and ActionTrax boards
Mid-range Front Runner Slimline II full rack, Pro Stainless Steel Camp Table Kit, Dometic CFX5 45 and HWK-DC hardwire kit
Full build Prinsu Pro rack, CBI front bumper in black, Rago rear bumper, Dometic CFX5 45, ARB CKMA12, ActionTrax boards and DV8 MOLLE panels

Choose your front bumper once. Buying one now and swapping later is the most expensive way to end up with the bumper you wanted in the first place.

What to skip on a GX 550

  • GX 460 or GX 470 parts. Same badge, different truck. More on that in the FAQ below.
  • Land Cruiser 250 parts that do not list the GX 550. The DV8 rack, light mount and MOLLE panels list both. Plenty of other parts do not.
  • A light bar cutout with no light bar. On the Prinsu Pro, take the Standard deflector unless a bar is coming.
  • A roller fairlead on the CBI bumper. CBI says it is not compatible. Plan on a hawse fairlead.
  • The DV8 MOLLE panels with a third row. DV8 does not recommend them with third-row seating.
  • A "close enough" mattress. Until one lists the GX 550, use a pad or cot.

Lexus GX 550 FAQ

Do GX 460 or GX 470 parts fit the GX 550?

No. It is a different generation with different mounts. Every product in this guide lists the 2024 and newer GX 550, and the makers keep GX 460 parts separate. Prinsu and Front Runner each make a different rack for the older truck, and Rago lists its GX 550 bumpers for 2024 to 2026 only. If a part does not list the GX 550, confirm fit with us before ordering.

Which roof racks fit the GX 550?

Three we carry list the 2024 and newer GX 550: the Prinsu Pro Lexus GX550 roof rack, the DV8 Spec Series roof rack for the Land Cruiser 250 and GX 550, and the Front Runner Slimline II in full or 3/4 length. All three bolt on, and Prinsu and Front Runner say no drilling is needed.

Can I keep using my sunroof with a GX 550 roof rack?

With the DV8 Spec Series, yes. DV8 says its rack retains the factory sunroof and antenna. Prinsu and Front Runner do not publish sunroof clearance for their GX 550 racks, so confirm fit with us before ordering.

How much weight can I carry on a GX 550 roof?

Use the roof load figure in your Lexus owner's manual. None of the rack makers publish it for the GX 550. Prinsu and DV8 point you to the owner's manual, and Front Runner does not publish a load rating for its GX 550 kits. Prinsu rates its rack at 700 lb dynamic and 1,200 lb static, but says the rack is limited by the weight capacity of the vehicle. Subtract the rack's own weight and carry the rest.

Will an aftermarket bumper affect my sensors or airbags?

Rago says its winch front bumper retains the Lexus Safety System, the parking sensors and the drive assist features, and its rear bumper keeps the parking and blind spot sensors. CBI says its front bumper retains the factory sensors. No maker here publishes airbag compatibility, so if that matters, confirm fit with us before ordering.

What winch fits the CBI GX550 front bumper?

CBI lists a gusseted mount for 8,000 to 12,000 lb winches and says the bumper is not compatible with roller-style fairleads, so plan on a hawse fairlead.

Is there a mattress made for the GX 550?

Not yet. We do not carry a vehicle mattress with the GX 550 in its fitment. Use a sleeping pad or cot on the folded cargo floor, and if you are not sure what fits, confirm fit with us before ordering.

How does freight shipping work for racks and bumpers?

Large, heavy items like rooftop tents, bumpers and bed racks have to ship by truck freight, which costs a lot more than a regular parcel. These items carry a flat freight charge to cover part of that cost. You will see it at checkout before you pay. Liftgate delivery is available on request. Confirm with us before ordering. Items that ship by truck freight are not part of our free shipping offer. Front Runner roof racks ship free by ground to the Lower 48.

Can I return a rack or bumper?

You have up to 30 days from delivery to return an item. Every return needs a return authorization number (RMA) first. Email hello@gearlanders.com to get one. Our mistake (the item is defective, arrived damaged, we sent the wrong item, or our product page listed your vehicle and it did not fit): we send you a return label, we pay the return shipping, and there is no restocking fee. Any other reason (a normal return): you ship the item back with your own tracked label and pay the return shipping, plus a 5% restocking fee (5% of the product cost). If our product page lists your vehicle and the part does not fit, we cover the return, freight included, even after you sign the delivery receipt (bill of lading). Signing for freight only rules out returns for a change of mind or for damage not noted at delivery, and returns start with an email to hello@gearlanders.com. Please confirm fit before you order a freight item. The full policy is on our FAQ page.
