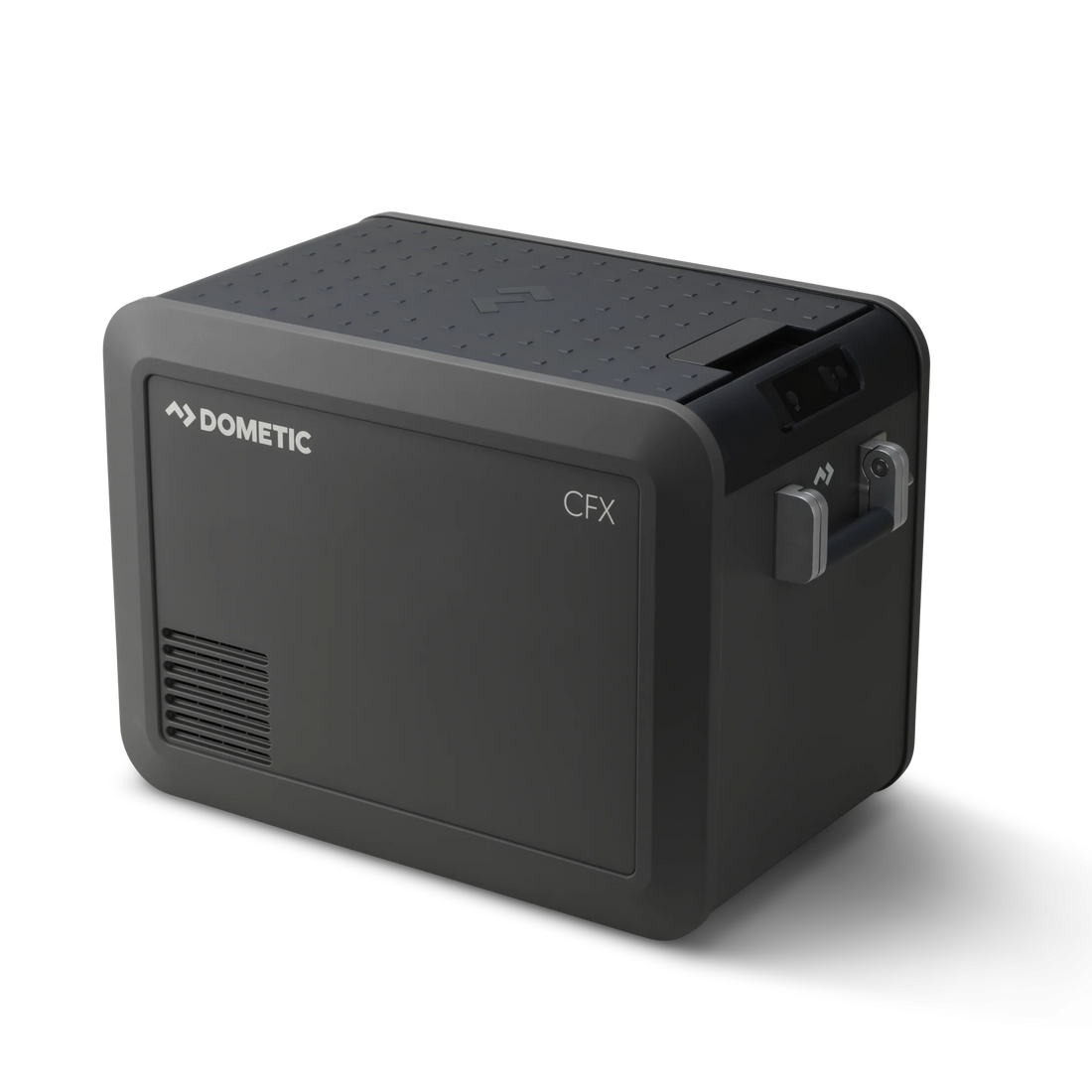

Dometic CFX5 45 electric cooler, front three-quarter view
Dometic CFX5 45 in a mountain meadow
Dometic CFX5 45 control panel with a USB cable plugged in

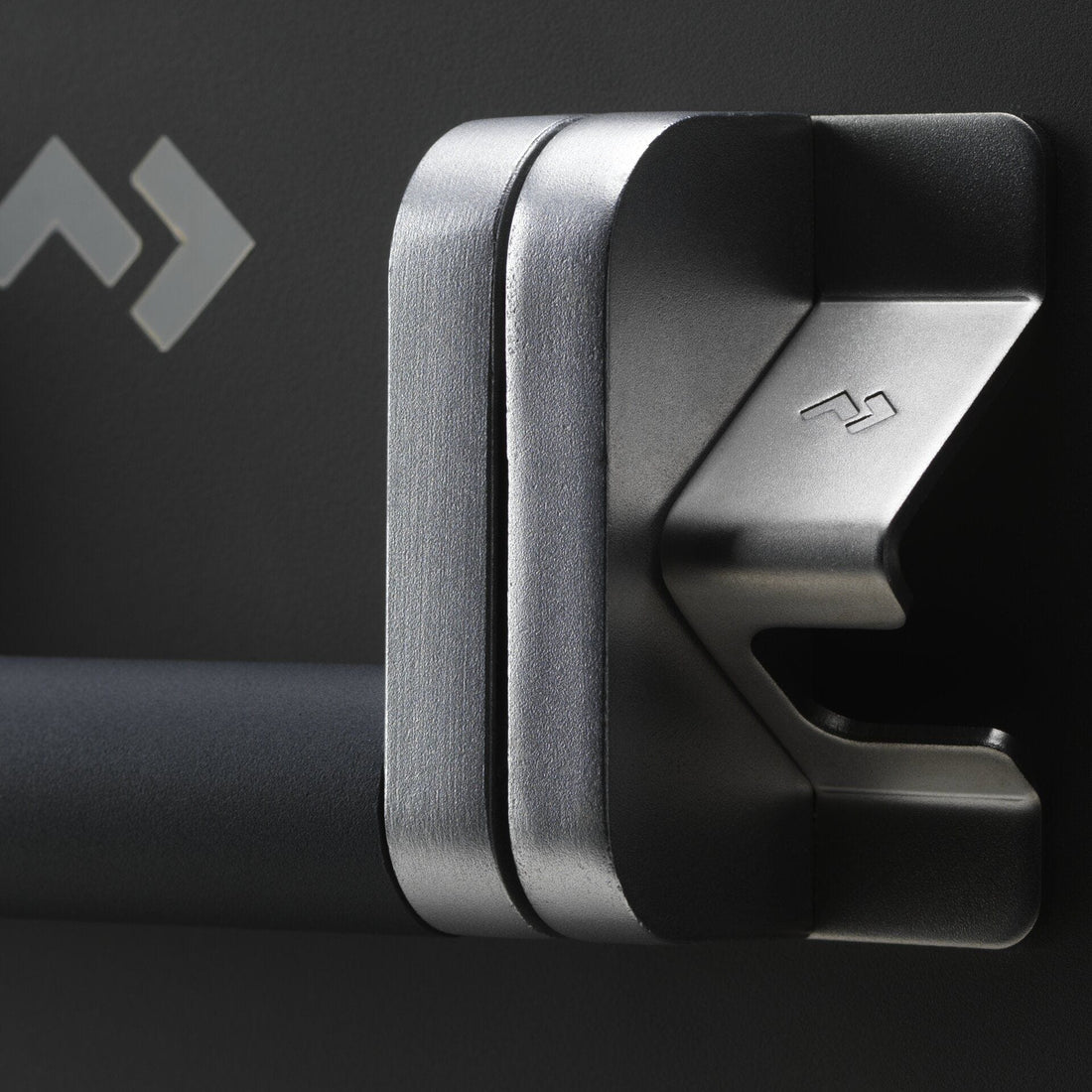

Dometic CFX5 45 folding handle, close-up

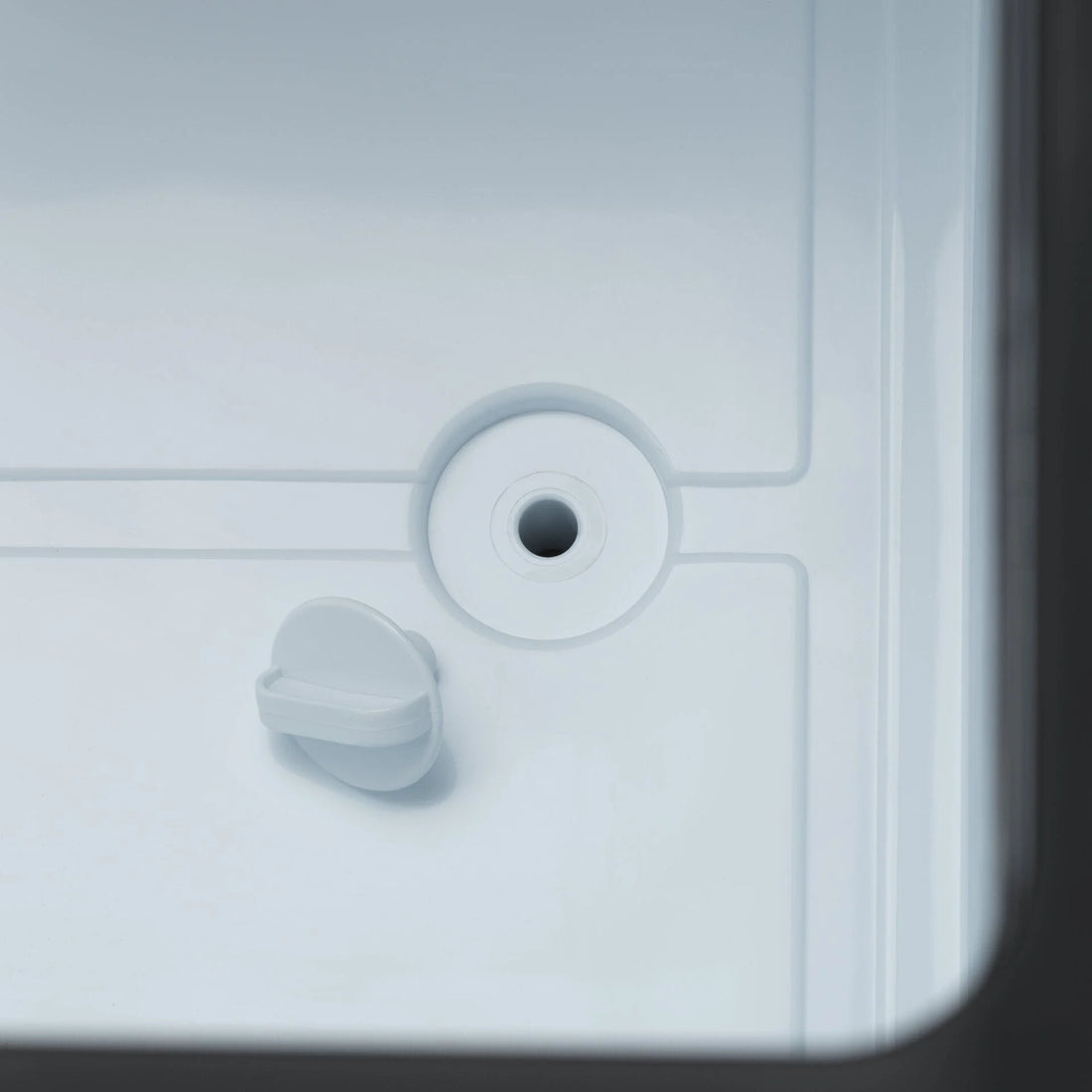

Dometic CFX5 45 interior drain plug, close-up

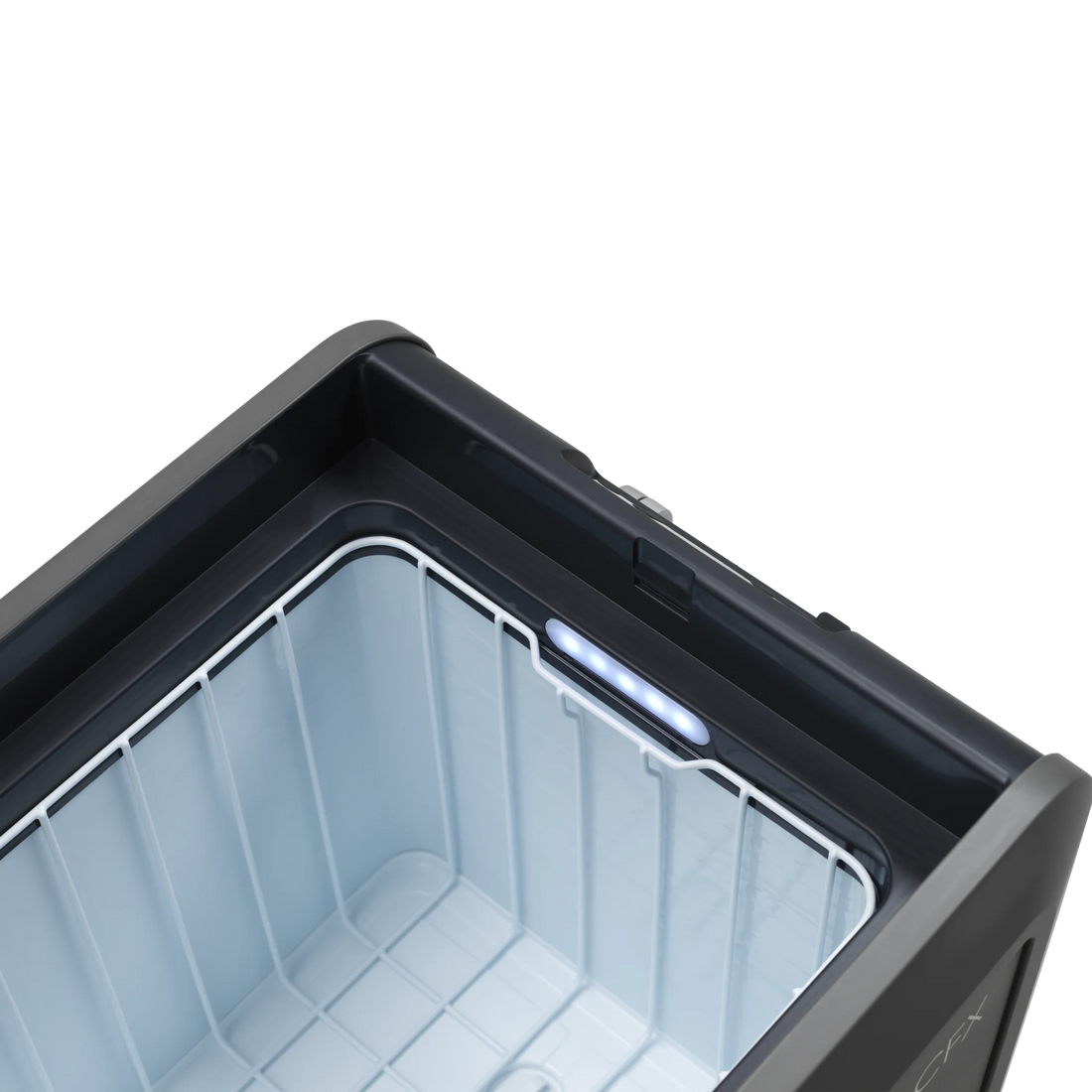

Dometic CFX5 45 interior liner, close-up

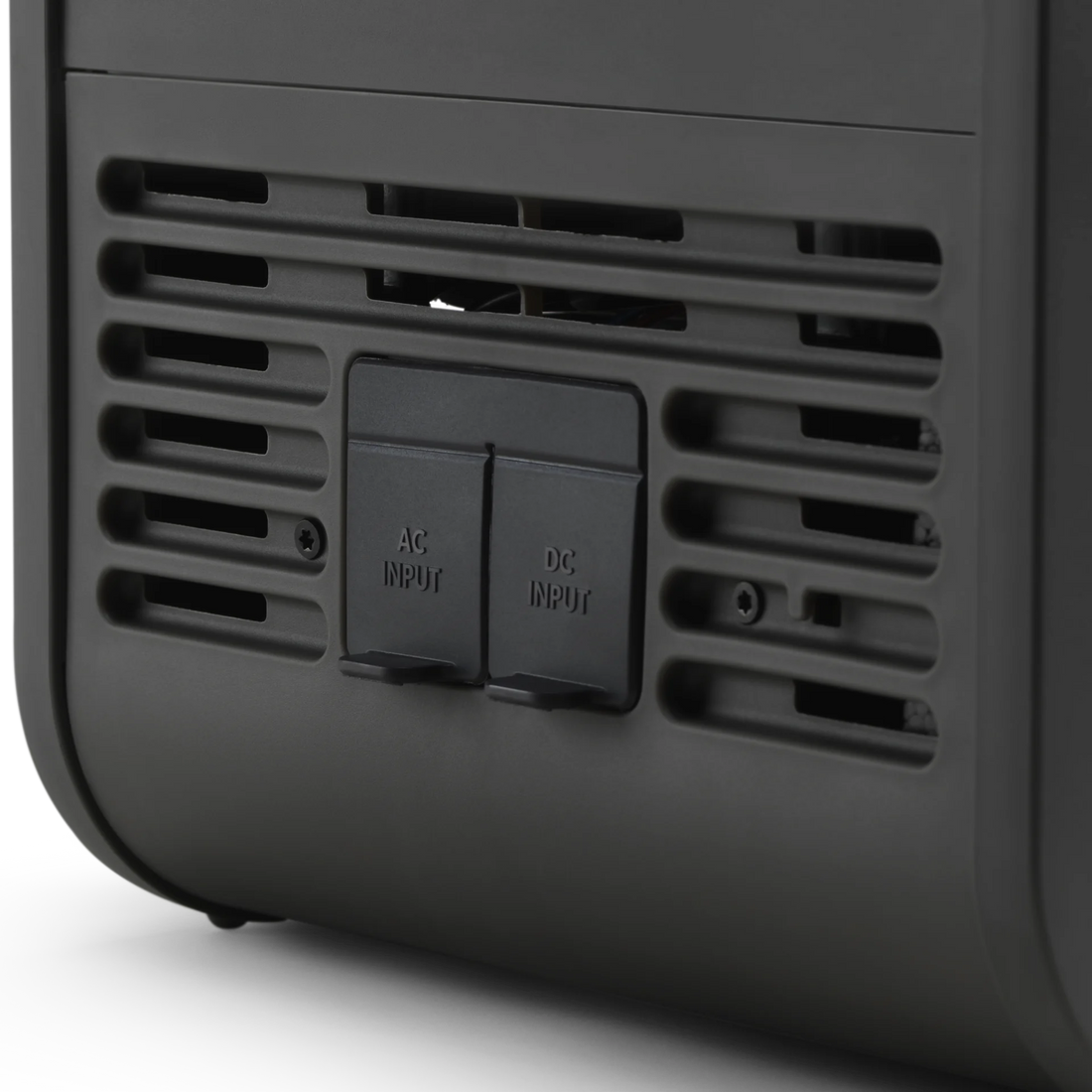

Dometic CFX5 45 rear vents with AC and DC power inputs

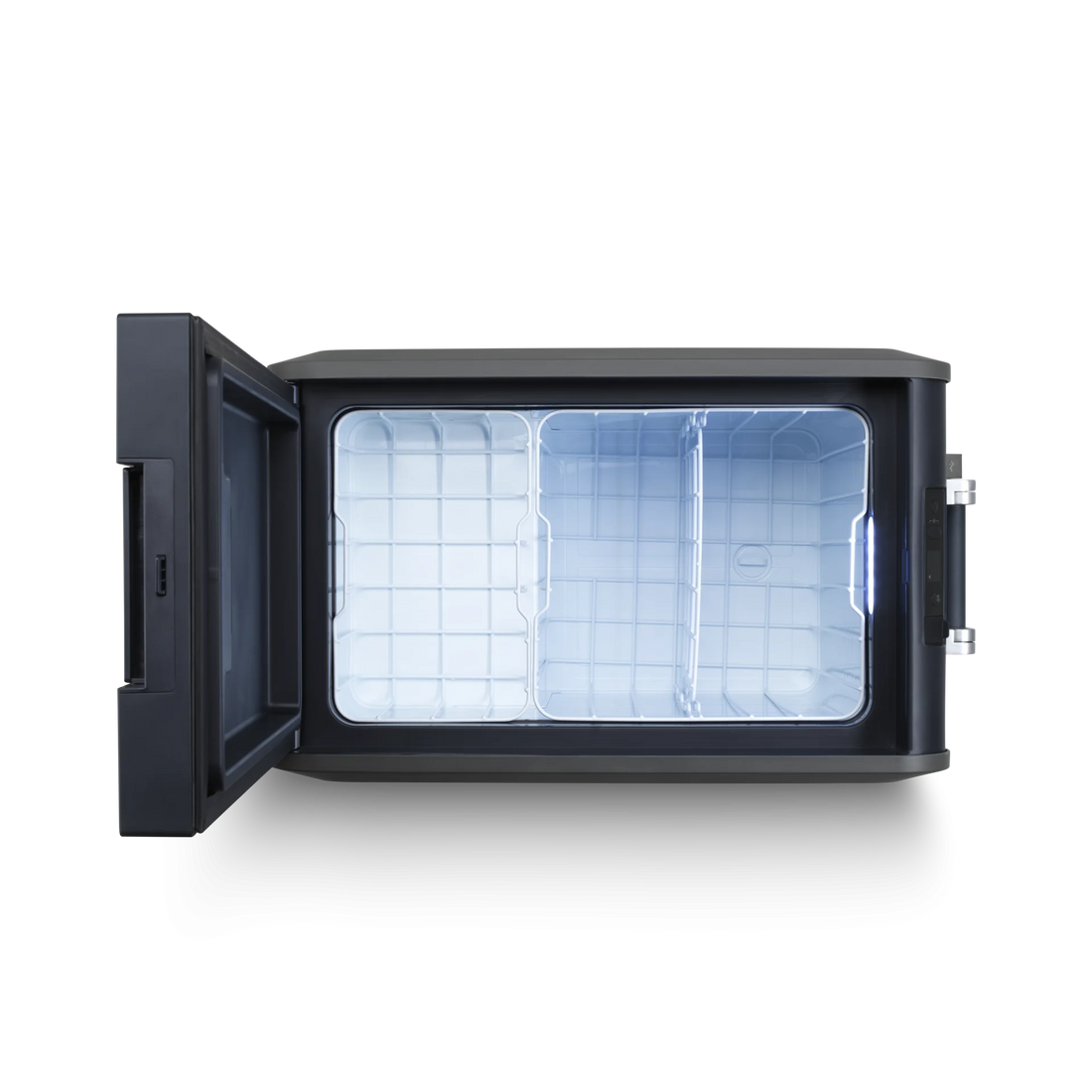

Dometic CFX5 45 with lid open, front view of the interior

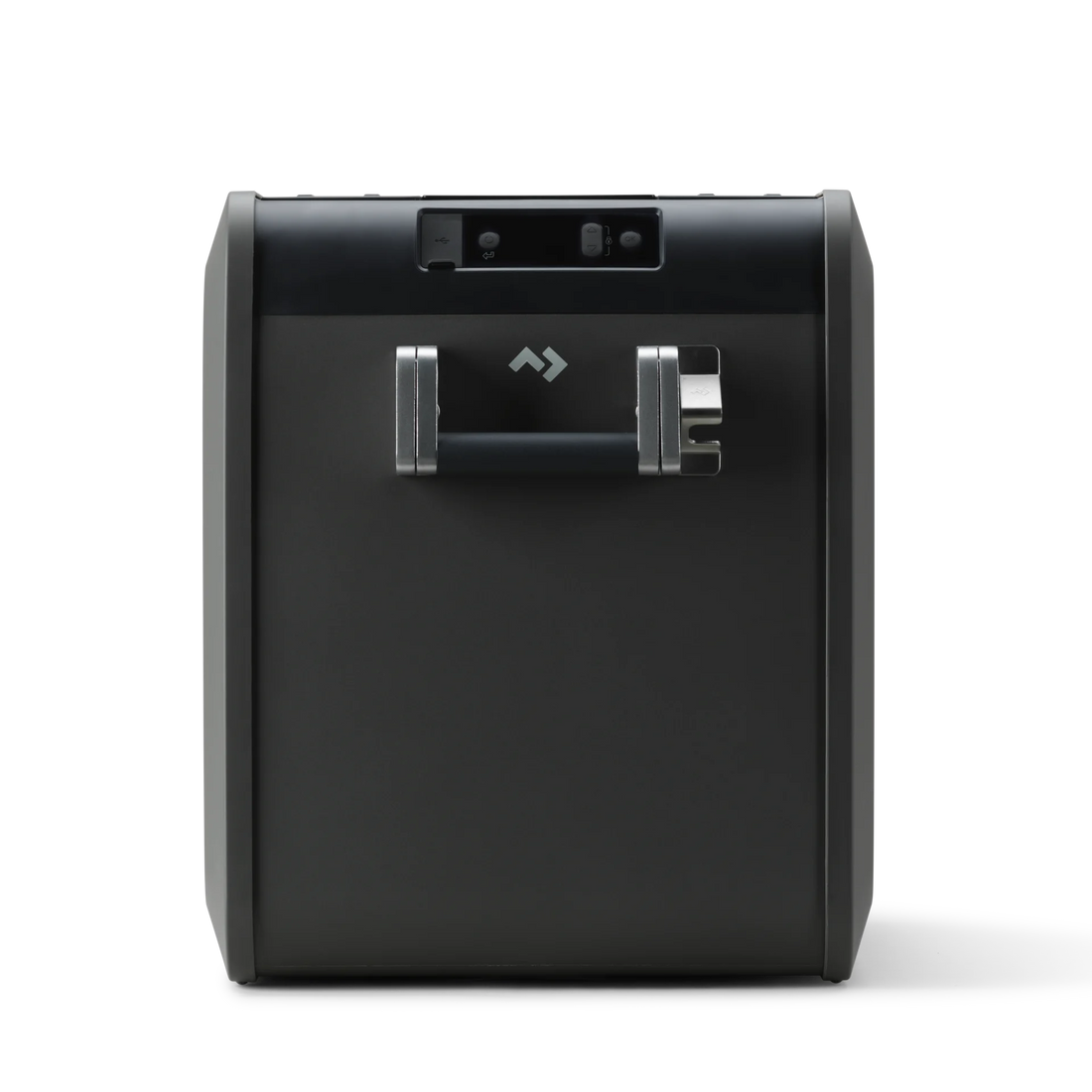

Dometic CFX5 45 end view with folding handle and control panel

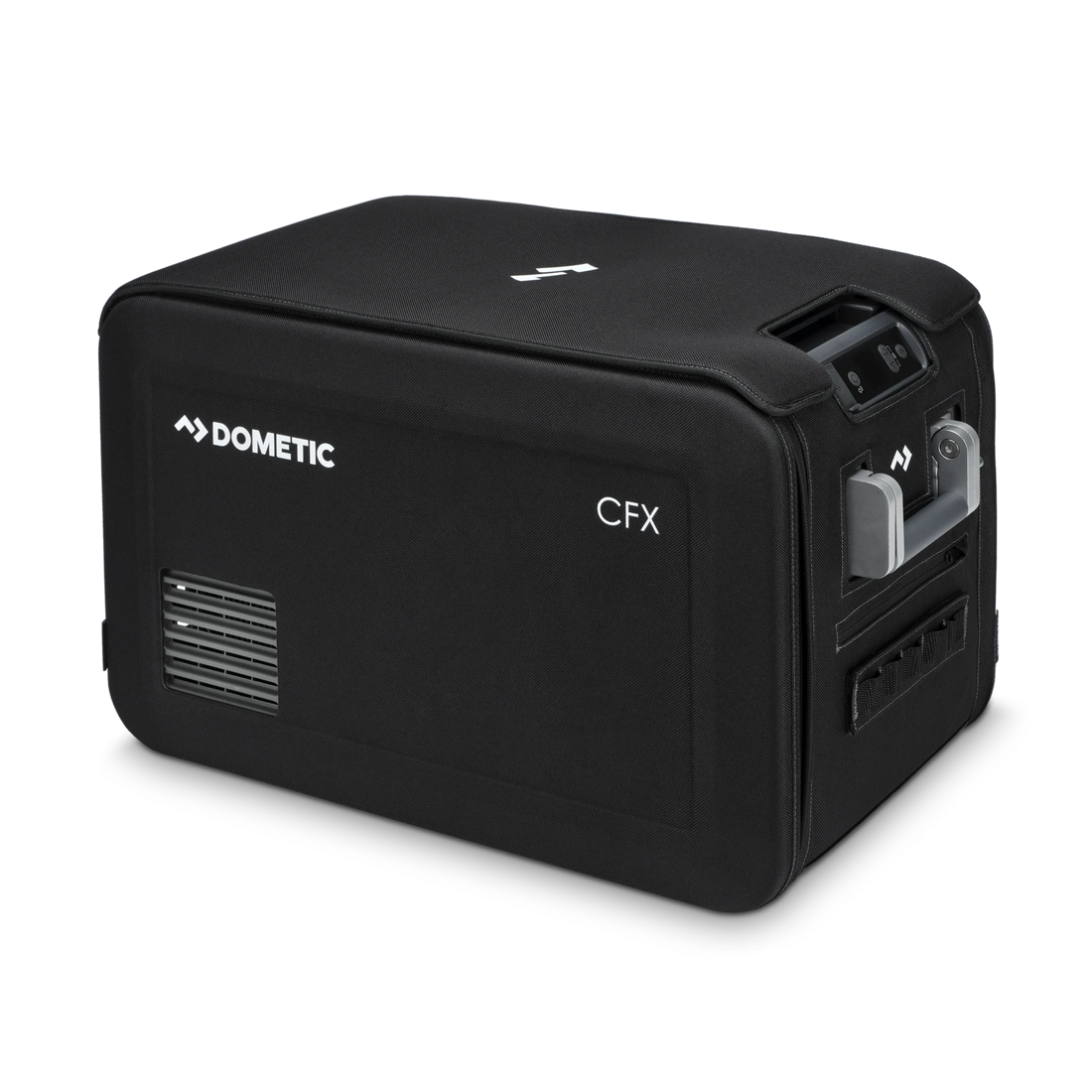

Dometic CFX5 45 in its protective cover, three-quarter view

Dometic CFX5 45 Electric Cooler, 45L Portable Fridge Freezer

$1,049.99
Options 45L Cooler Only
Free shipping on $199+ Shipping, returns and who it is for

Who it is for: Overlanders, van travelers, and extended campers who want a 45L compressor fridge/freezer with ice-free cooling down to about -7°F.

Shipping: Free ground shipping to the Lower 48 on orders of $199 or more. Under $199, the ground rate shows at checkout.

Returns: 30 days on new items in the original packaging. If the item arrived damaged or defective, or we sent the wrong item, we cover the return shipping and there is no restocking fee. Any other return ships back at your cost with a restocking fee of 5% of product cost.

Why buy from us: Ships free by ground to the Lower 48 on orders of $199 or more; 30-day returns on unused items in original packaging.

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Description

The Dometic CFX5 45 is a 46L portable fridge freezer and electric cooler for camping, road trips and overland travel. Dometic sizes it for up to five people on weekend trips, family camping and longer travel.

It holds up to 67 12 oz cans, cools from -7F to 68F and runs on 12/24V DC or 100 to 240V AC, so it works in the vehicle, at camp or at home.

Why it works

  • Vacuum Insulated Panels (VIP) and a tight TPE lid gasket hold the cold
  • VMSO 3.5 compressor cools down to -7F
  • Bluetooth app tracks power use and temperature and alerts you if the lid is left open
  • Extended evaporator on the inner walls spreads cold air evenly
  • 3-stage dynamic battery protection
  • Self-folding aluminum alloy handles, removable nonslip lid and a built-in bottle opener

Fit

Power: runs on 12/24V DC in the vehicle or 100 to 240V AC at home, with both cables included. There is no internal battery. Dometic's 3-stage battery protection watches the vehicle battery so the cooler doesn't drain it.

Size check: 27.32 x 15.67 x 18.74 in (D x W x H). M6 threaded inserts in the base let you bolt it down.

Options: choose Cooler Only, or Cooler + Protective Cover to add the Dometic protective cover (part 9620012805).

Specs

  • Model: CFX545
  • Volume: 46 L (IEC 62552-3)
  • Capacity: up to 67 x 12 oz cans
  • Temperature range: -7F to 68F
  • Zones: single
  • Dimensions: 27.32 x 15.67 x 18.74 in (D x W x H)
  • Net weight: 40.26 lb
  • Power: 12/24V DC, 100 to 240V AC
  • DC current draw: 8.1A at 12V, 3.7A at 24V
  • Energy use at 12V DC: 1.05 Ah/h at 90F ambient, 39F inside
  • Refrigerant: R1234yf
  • USB port, Bluetooth, LED interior light, drain plug
  • Base mounting: M6 threaded inserts
  • Operating ambient: 61F to 109F

In the box

  • Cooler
  • 12/24V DC connection cable
  • 100 to 240V AC connection cable
  • Removable wire baskets
  • Bottle opener
  • Manual and warranty card
  • Protective cover (Cooler + Protective Cover option only)

Warranty

Covered by the Dometic manufacturer warranty.

Shipping and returns

Ships by ground parcel to the lower 48 states.

Shipping policy | Refund policy

Shop more portable fridge freezers & coolers

Questions

Should I get the CFX5 45 or the CFX5 35?
Both share the same 27.32 by 15.67 inch footprint, per Dometic, so they fit the same CFX5 SLD3545 slide. The 45 stands 18.74 inches tall against 16.02 for the 35, which raises capacity from 36 to 46 liters, or from 50 to 67 cans of 12 ounces. Dometic sizes the 45 for up to five people and the 35 for up to four.
Is this the older Dometic CFX3 45?
No. This is the CFX5 45. Dometic describes the CFX5 as the next generation of its premium electric cooler range, with vacuum insulated panels (VIP) and a VMSO 3.5 compressor. For this model, Dometic lists a total volume of 46 L (IEC 62552-3), a temperature range of -7F to 68F, and a net weight of 40.26 lb. Those figures, and Dometic's CFX3 versus CFX5 note, are on https://www.dometic.com/en-us/product/cfx5-45-electric-cooler-97000050755
Is the CFX5 45 suitable for a boat or a van?
Dometic markets the 45 as a portable fridge for a van or a boat. Its manual says it can handle a short term tilt of up to 30 degrees, such as on a boat, and M6 threaded inserts in the base let you bolt it down. The manual also says the cooler should not be exposed to rain.
The CFX5 45 will not turn on the first time I plug it in. What should I do?
Dometic issued a start up procedure for the CFX5 series. Plug in the AC or DC cable and wait for the Dometic logo to appear and clear. Press and hold the power button for about 5 seconds and release it, then press it briefly to switch on. If the cooler loses power and does not restart on its own, repeat those steps.
How precisely can I set the temperature on the CFX5 45?
In 1 degree steps, in either Celsius or Fahrenheit, from -7F up to 68F per Dometic. The color TFT display is weatherproof and uses soft touch buttons, and you can adjust its brightness. Holding two of its buttons together for 3 seconds locks the display, and the same press unlocks it, per the Dometic manual.
How do I clear frost from inside the CFX5 45?
Dometic says humidity can build frost on the inside walls or evaporator, which cuts cooling. Empty the cooler, keeping food cold in another cooler if needed, switch it off and leave the lid open. Wipe away the meltwater as it thaws. The manual warns never to chip at ice or frozen items with hard or pointed tools.
How many amps does the CFX5 45 pull, and can I wire it in permanently?
Dometic lists 8.1A at 12V and 3.7A at 24V while running, and an average of 1.05 Ah per hour at 90F outside and 39F inside. On AC it is rated at 49W. For a fixed install, Dometic sells the HWK-DC hardwiring kit (9600024894), and the manual shows the cooler running from the Dometic PLB40 portable battery.
