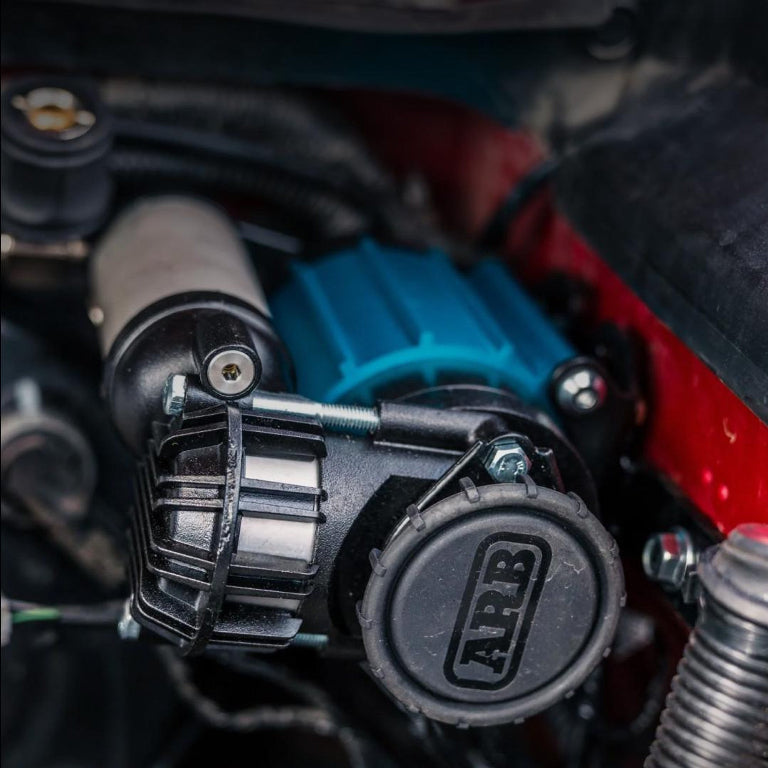

ARB CKMA12 single motor onboard air compressor mounted in an engine bay

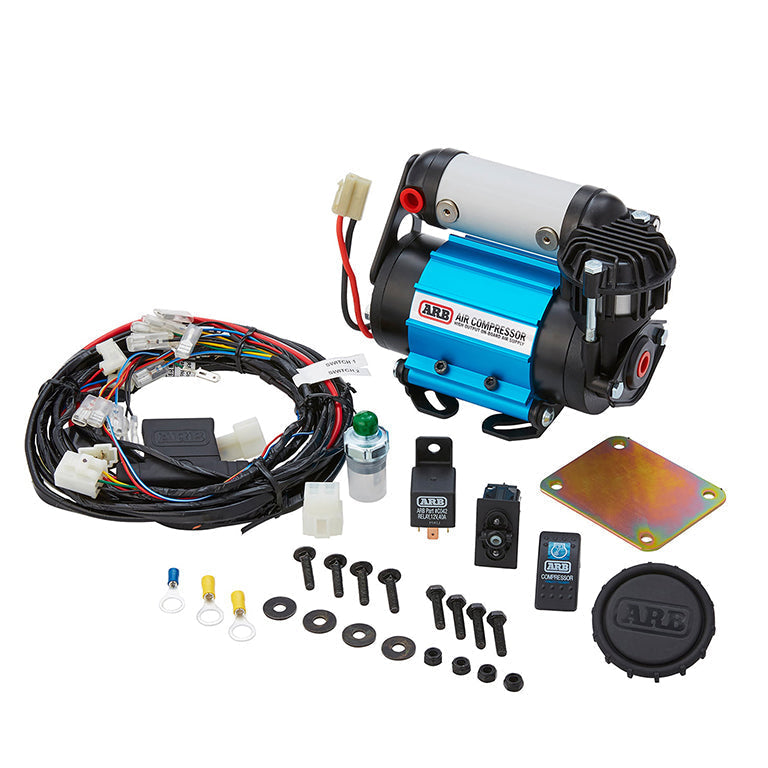

ARB CKMA12 onboard air compressor with wiring loom, switch, pressure switch, filter and mounting hardware

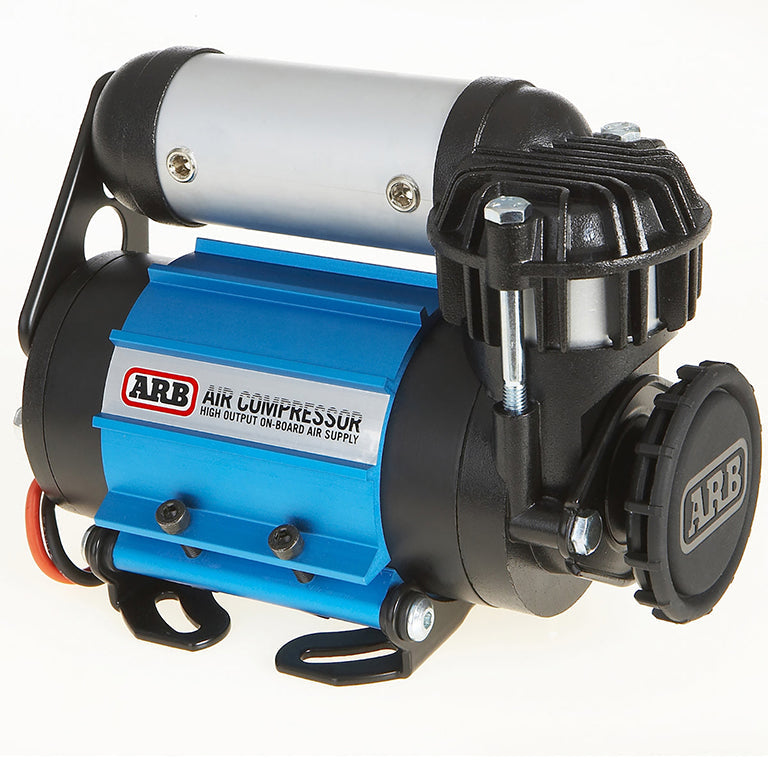

ARB CKMA12 12V onboard air compressor, blue motor and anodized mounting bracket

ARB Onboard Air Compressor

$399.00
Free shipping on $199+ Shipping, returns and who it is for

Who it is for: Overlanders who want a compact onboard 12V ARB compressor for tire inflation and Air Locker use.

Shipping: Free ground shipping to the Lower 48 on orders of $199 or more. Under $199, the ground rate shows at checkout.

Returns: 30 days on new items in the original packaging. If the item arrived damaged or defective, or we sent the wrong item, we cover the return shipping and there is no restocking fee. Any other return ships back at your cost.

Why buy from us: Ships free by ground to the Lower 48 on orders of $199 or more; 30-day returns on unused items in original packaging.

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Description

The ARB CKMA12 is a single-motor 12V onboard air compressor. It is sealed against moisture and dust and built from lightweight, high strength engineering grade materials.

A hard-anodized cylinder bore cuts friction, and a Teflon-impregnated carbon fiber piston seal is made for long, trouble-free life. The anodized mounting bracket dissipates motor heat and lets you reposition the compressor 180 degrees.

Why it works

  • Sealed for moisture and dust resistance (IP55)
  • Hard-anodized cylinder bore
  • Teflon-impregnated carbon fiber piston seal
  • Anodized bracket repositions 180 degrees
  • Over-pressure safety valve
  • Motor thermal protection
  • Heavy duty maxi-fuse for in-line circuit protection
  • Quiet operation

Fit

No vehicle-specific fitment. Mounts in the vehicle with its bracket; ARB offers vehicle mount kits separately.

Power: 12V.

Specs

  • Part number: CKMA12
  • Max pressure: 100 psi
  • Air flow: 3.08 CFM at 0 psi, 2.34 CFM at 29 psi
  • Duty cycle: 50% (30/30)
  • Ingress rating: IP55
  • Size: 7.5 L x 3.86 W x 5.7 H in
  • Weight: 7.7 lb

In the box

  • CKMA12 compressor with mounting bracket

Warranty

Covered by ARB's warranty; ARB publishes its USA warranty booklet.

Shipping and returns

Ships by ground parcel to the lower 48 states.

Shipping policy | Refund policy

Shop more recovery gear & tools

Questions

How long can the CKMA12 run before it needs a break?
ARB rates it at a 50% duty cycle, which means 30 minutes of running followed by 30 minutes off to cool, measured at 72 F. Built-in thermal protection shuts the motor down if it overheats.
How much air does it move while airing tires up?
ARB's spec sheet lists 3.08 CFM (87.2 L/min) at 0 psi and 2.34 CFM (65.9 L/min) at 29 psi, with a 100 psi maximum.
What wiring parts come with it?
ARB's install guide lists a wiring loom, a sealed 40 A relay, a 40 A maxi blade fuse, a 5 A mini blade fuse holder and the compressor switch, along with the pressure switch and manifold hardware.
At what pressures does the switch turn the compressor on and off?
Per ARB's install guide, the pressure switch opens at 100 psi and closes again at 70 psi.
Can it run ARB Air Locker differentials?
Yes. ARB designs its compressor pressure switches around the working range of its Air Locker, and the manifold has two 1/8 in BSPT solenoid ports. Air Locker solenoids can also be fitted with ARB's optional manifold kit 171503.
How much current does it draw?
ARB lists 14.2 A with no load and 25.2 A under load at 29 psi on the 12 V CKMA12.
