How to Set Up a Dual Battery System for Overlanding
Updated September 2026.
A loaded overland rig asks a lot of its electrical system: a 12V fridge running around the clock, camp lights, device charging, and often an onboard air compressor and a winch. A single starter battery isn't built for that. Run a fridge on it overnight and you can wake up to a truck that won't start.
A dual battery system gives camp loads their own battery and saves the starter battery for starting the engine.
How a dual battery system works
- Starter battery. The vehicle's original battery. It's built to deliver a big burst of current for a few seconds to crank the engine, not to be drained slowly overnight.
- Auxiliary battery. A second battery built for deep cycling. It runs the fridge, lights, and outlets through its own fuse block.
- A charging link. With the engine running, the alternator charges both batteries. With the engine off, the link separates them, so camp loads can only drain the auxiliary battery.
That link is either an isolator or a DC-DC charger.
Isolators (voltage-sensitive relays) connect the batteries when they sense charging voltage and disconnect them when it drops. They're simple and inexpensive, but the auxiliary battery only gets whatever voltage the alternator puts out, which may not charge it fully, especially if it's lithium.
DC-DC chargers take alternator power and run a multi-stage charge profile matched to the auxiliary battery's chemistry. They're the right choice for lithium batteries, for batteries mounted far from the alternator, and for many newer vehicles with smart alternators that lower their output voltage once the starter battery is full. Many DC-DC chargers also have a solar input, so one unit handles both charging sources.
When you need one
Not everyone does. If the fridge only runs while you drive and you charge devices from a portable battery like the Dometic PLB15 (15Ah LiFePO4, up to 192 Wh at 12V), a single battery can work. Dometic's CFX2 fridges also have a 3-stage battery monitor that helps protect the starter battery.
You need a dual battery system when:
- The fridge runs overnight or while you're parked for days
- You camp in one spot and want lights, fans, and charging without starting the engine
- You add solar and need somewhere to store the harvest
- You can't risk a no-start far from help
DIY or professional install
If you're comfortable sizing cable, crimping heavy lugs, fusing every positive run, and securing a heavy battery so it can't shift on washboard roads, this is a manageable weekend project. If not, pay a qualified installer. A bad high-current connection can melt cable or start a fire, and it's the one part of the build you don't want to learn by trial and error.
The installation steps
Step 1: Choose the battery and its location

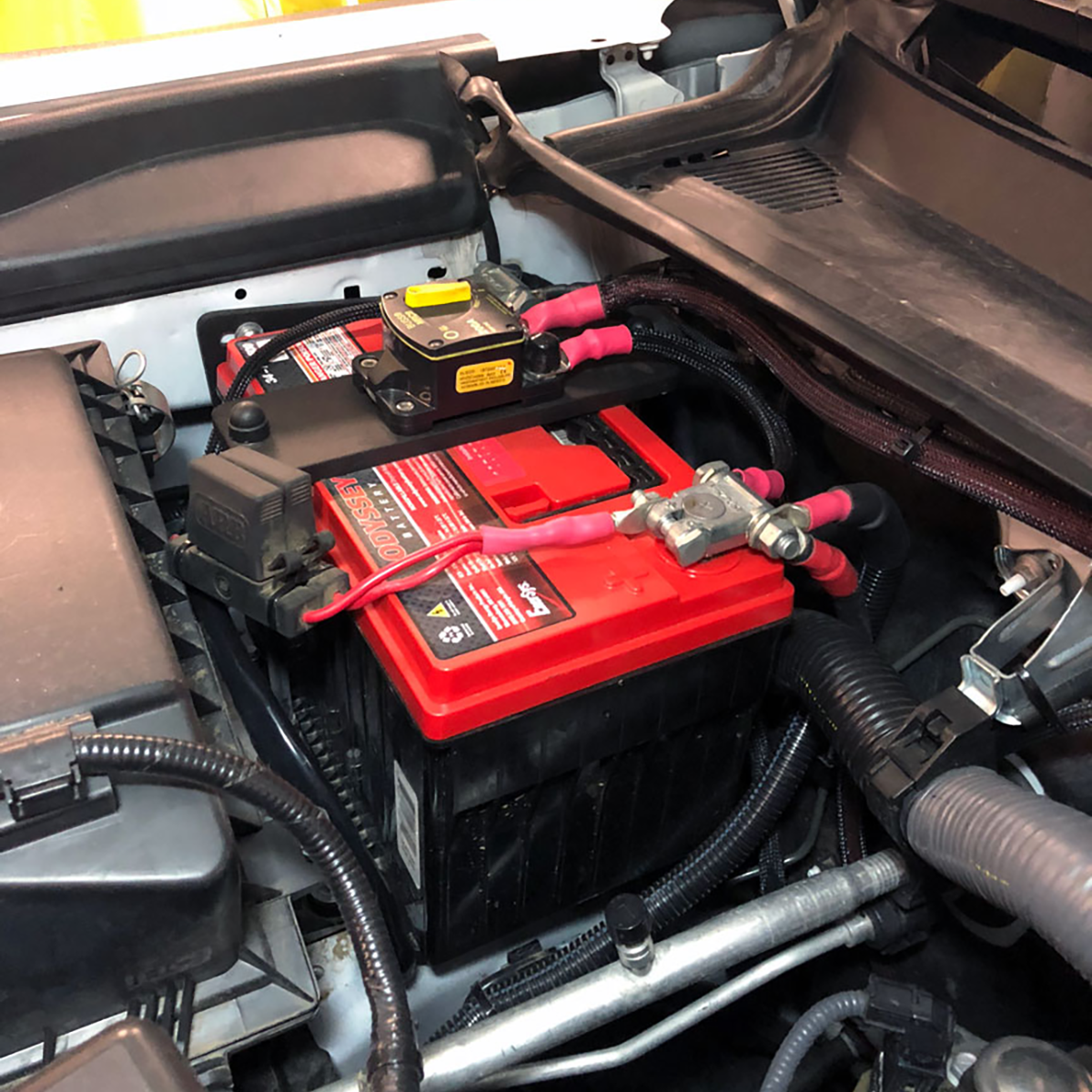

Common spots are the engine bay, under a seat, or the bed or cargo area. Check the maker's temperature limits before you pick the engine bay, since many lithium batteries aren't rated for that heat. Mount the battery in a secured tray or box so it can't move.
Step 2: Install the isolator or DC-DC charger
Mount it near the auxiliary battery and run a cable to it from the starter battery. Fuse both ends of every positive cable that connects to a battery, and size the cable from the maker's chart for the current and the length of the run. Ground to a clean chassis point or straight back to the battery negative.
Step 3: Wire the loads
Run the auxiliary battery to a fuse block, then out to your outlets. For a fridge, a Dometic HWK-DC Hardwire Kit gives you a fused, permanent 12/24V outlet instead of a lighter socket. High-draw accessories need their own heavy cable: the ARB CKMA12 draws up to 32 amps under load and ships with its own maxi-fuse. Wire a winch exactly as its maker specifies.
Step 4: Add charging sources
The alternator covers charging while you drive. Solar covers the days you sit still, and our solar setups guide covers sizing. Add a battery monitor so you can see what goes in and out and know how many days you can stay put.
Choosing a battery type
- Flooded lead-acid: the cheapest option. It has to stay upright, some types need water topped up, and it wears quickly if drained deeply.
- AGM: sealed, spill-proof, and vibration tolerant, which makes it a common auxiliary choice. It's heavy for its usable capacity and lasts longer if you avoid deep discharge.
- Gel: sealed and good with deep discharge, but it needs a charger with a gel profile and is less common in vehicles now.
- Lithium iron phosphate (LiFePO4): the lightest for its usable capacity, handles deep discharge, and accepts charge quickly. It costs more up front and needs a charger with a lithium profile, usually a DC-DC charger. It's the chemistry inside the PLB15.
