Starlink Mini Quick Release Mount
Description

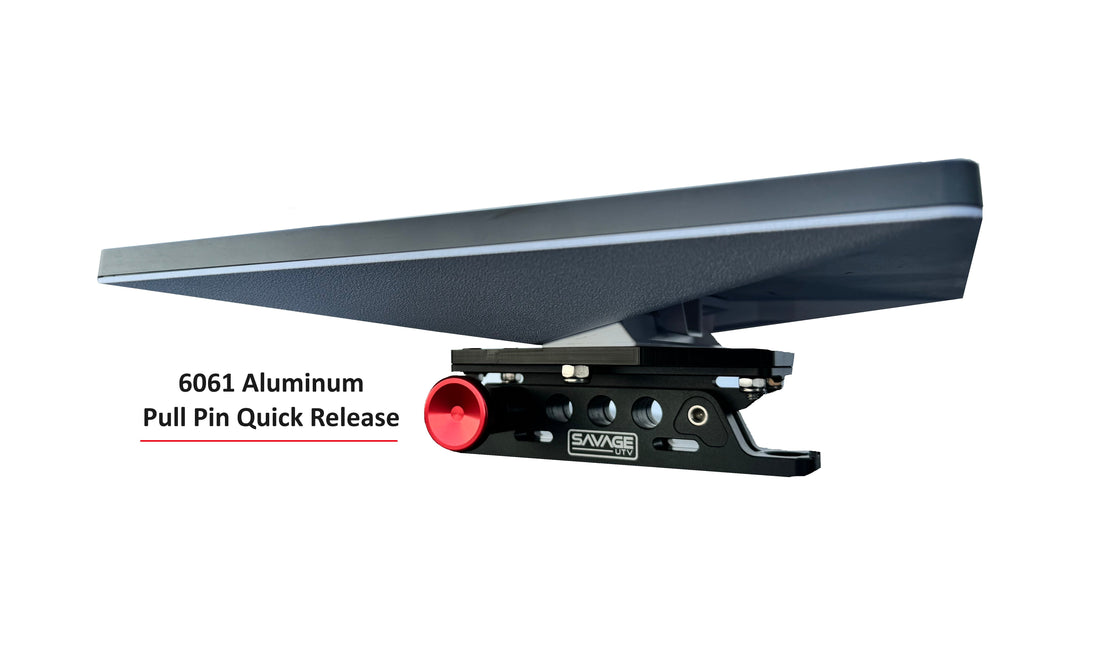

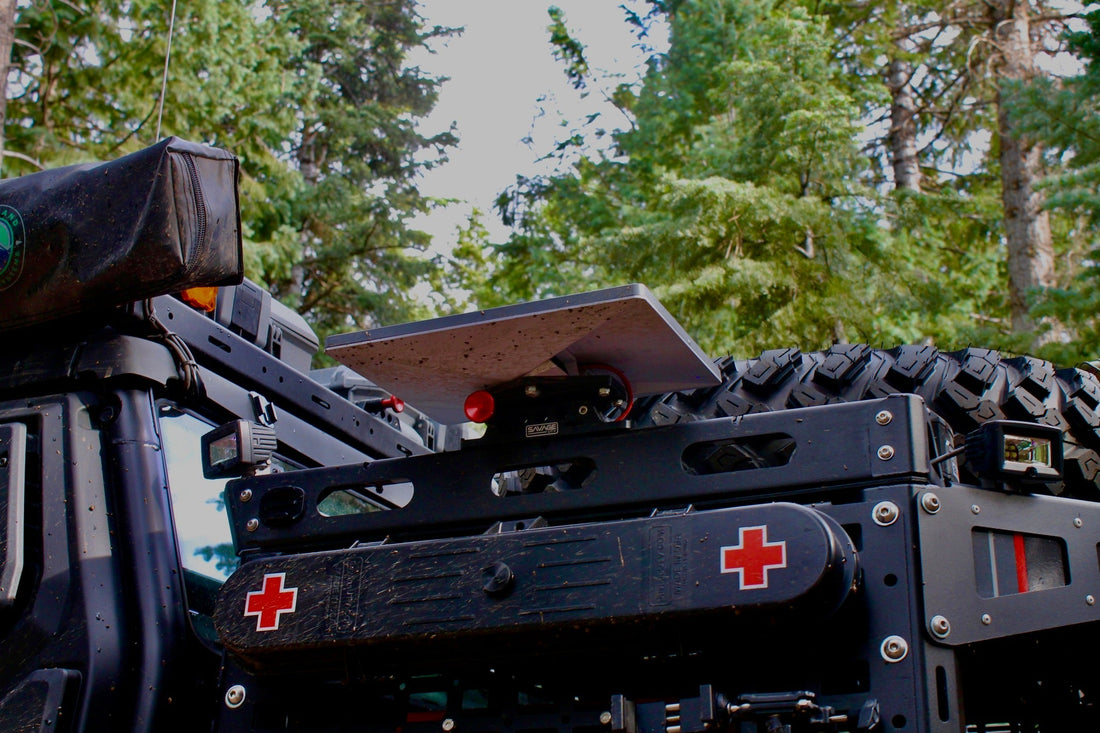

The Starlink Mini Quick Release Mount from Rugged Radios lets you mount and remove your Starlink Mini dish with no tools: pull the red knob and the dish separates from the mount. This Starlink Mini mount is built to handle gusty highway winds and rough road vibration, and it suits anyone who moves the dish between vehicles or campsites.

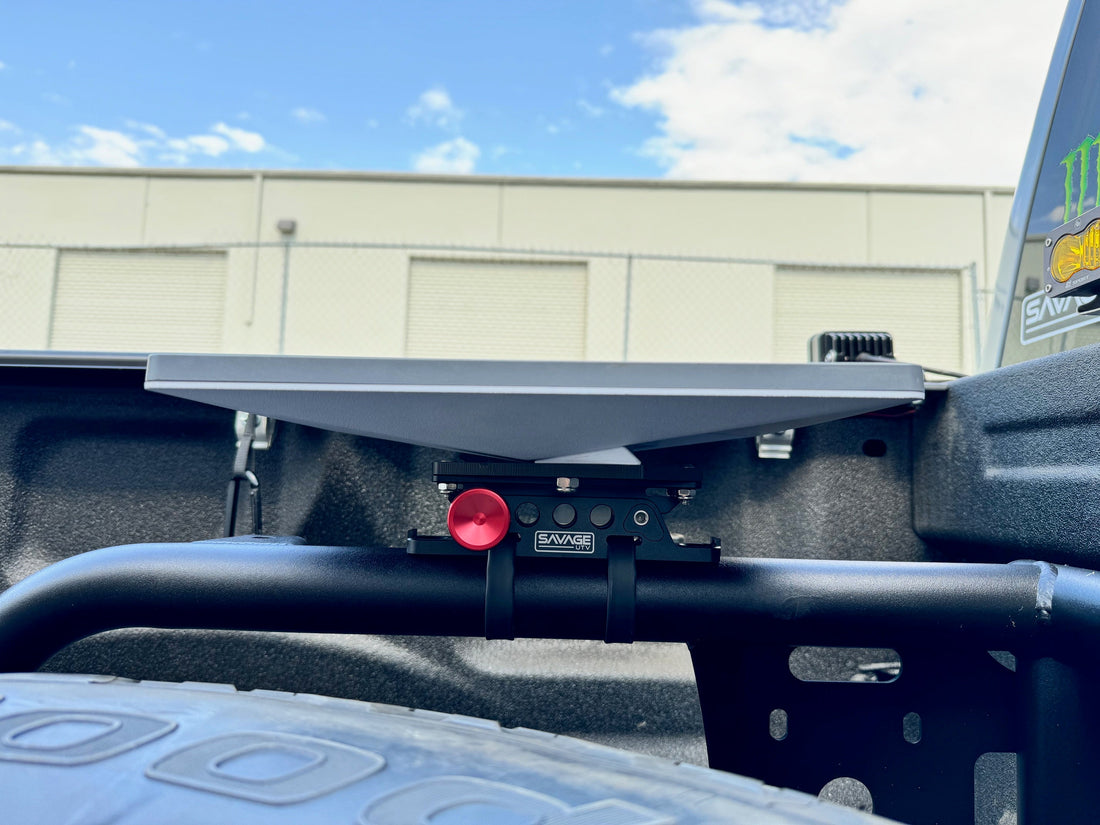

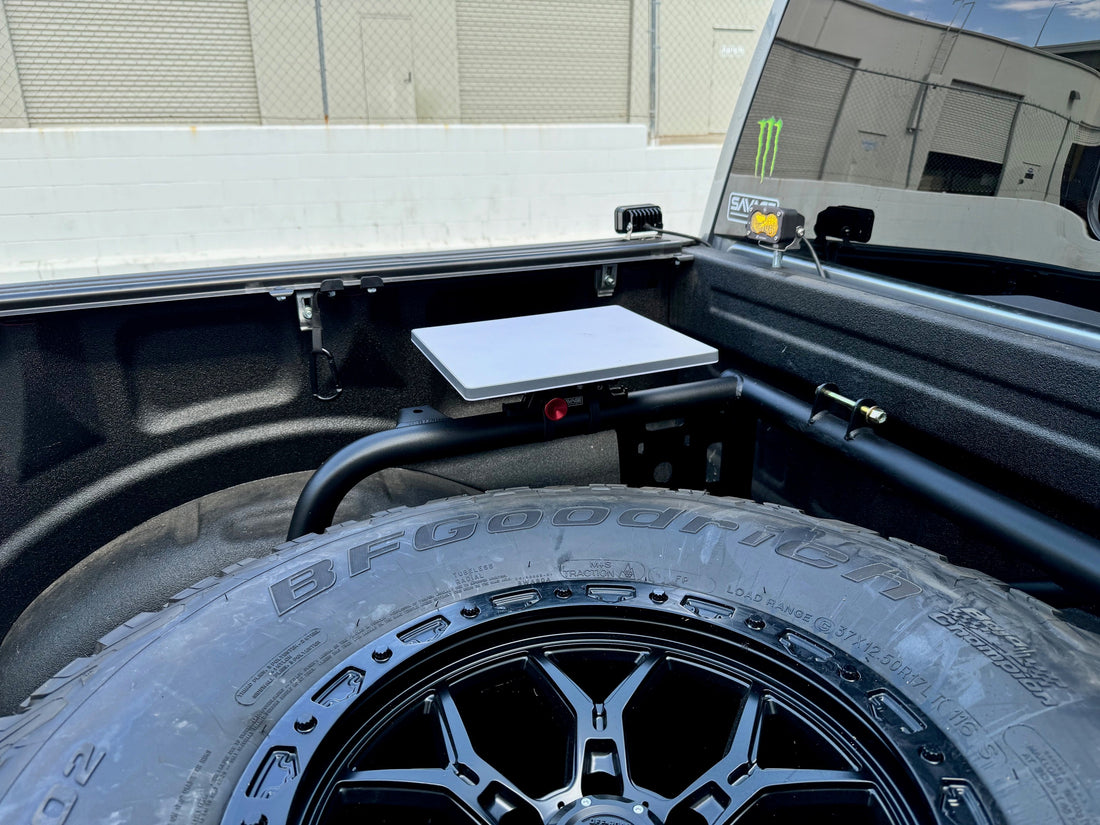

Bolt it to any flat surface, or clamp it to round roll cage or tube bars with the included hose clamps and insulation sleeves. It is machined 6061 anodized aluminum with stainless steel hardware, and it raises the dish 1.65 in above the surface for airflow and cable routing. Rugged builds in a slight amount of play so the release keeps working in bad weather, dirt and dust.
You attach the Starlink kickstand that came with your dish to the mount using the included stainless hardware. Some kickstands come pre-drilled, and a drill template is included for those that are not. A weatherproof quick-release cable and a lock are options.
Why it works
- Tool-free red-knob quick release
- Bolts to flat surfaces or clamps to tube bars
- 6061 anodized aluminum, stainless hardware
- Raises the dish 1.65 in for airflow
- Built for highway wind and road vibration
- Optional quick-release cable and lock
Fit
Universal for flat surfaces and round roll cage or tube bars.
Needed: your Starlink Mini dish and its kickstand, sold separately. The kickstand is not included with the mount.
Note: Starlink does not endorse Rugged Radios or this mount.
Specs

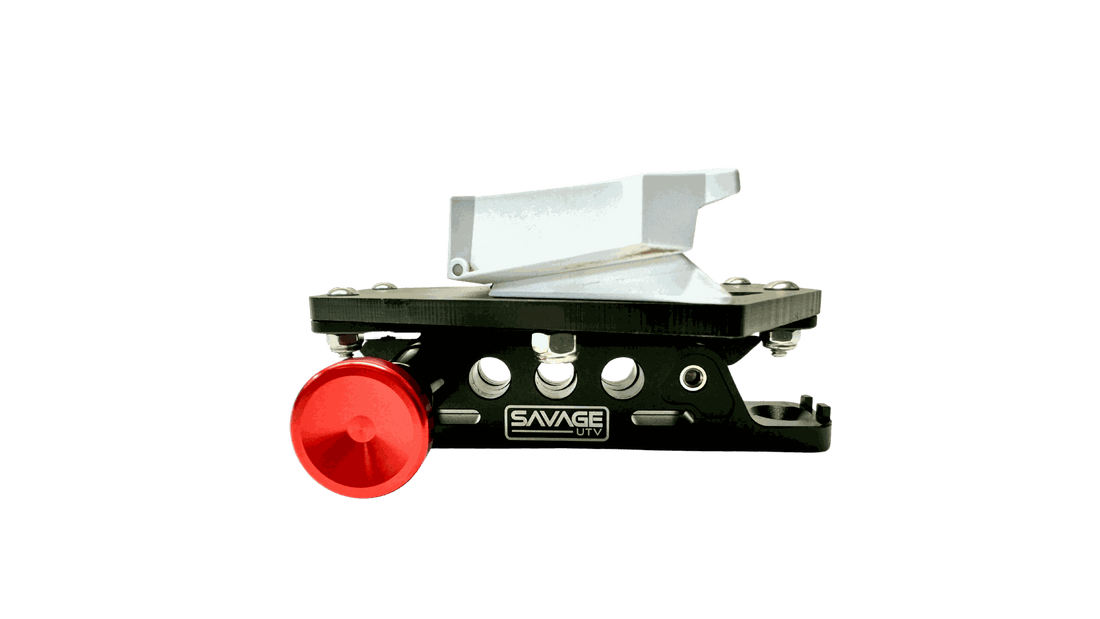

- Material: machined 6061 anodized aluminum, stainless steel hardware
- Height: dish sits 1.65 in above the surface
- Mounting holes: about 5.5 in apart on center
- Hole size: 0.3 in, for 1/4-20 or #8 hardware
- Tube mounting: hose clamps with insulation sleeves

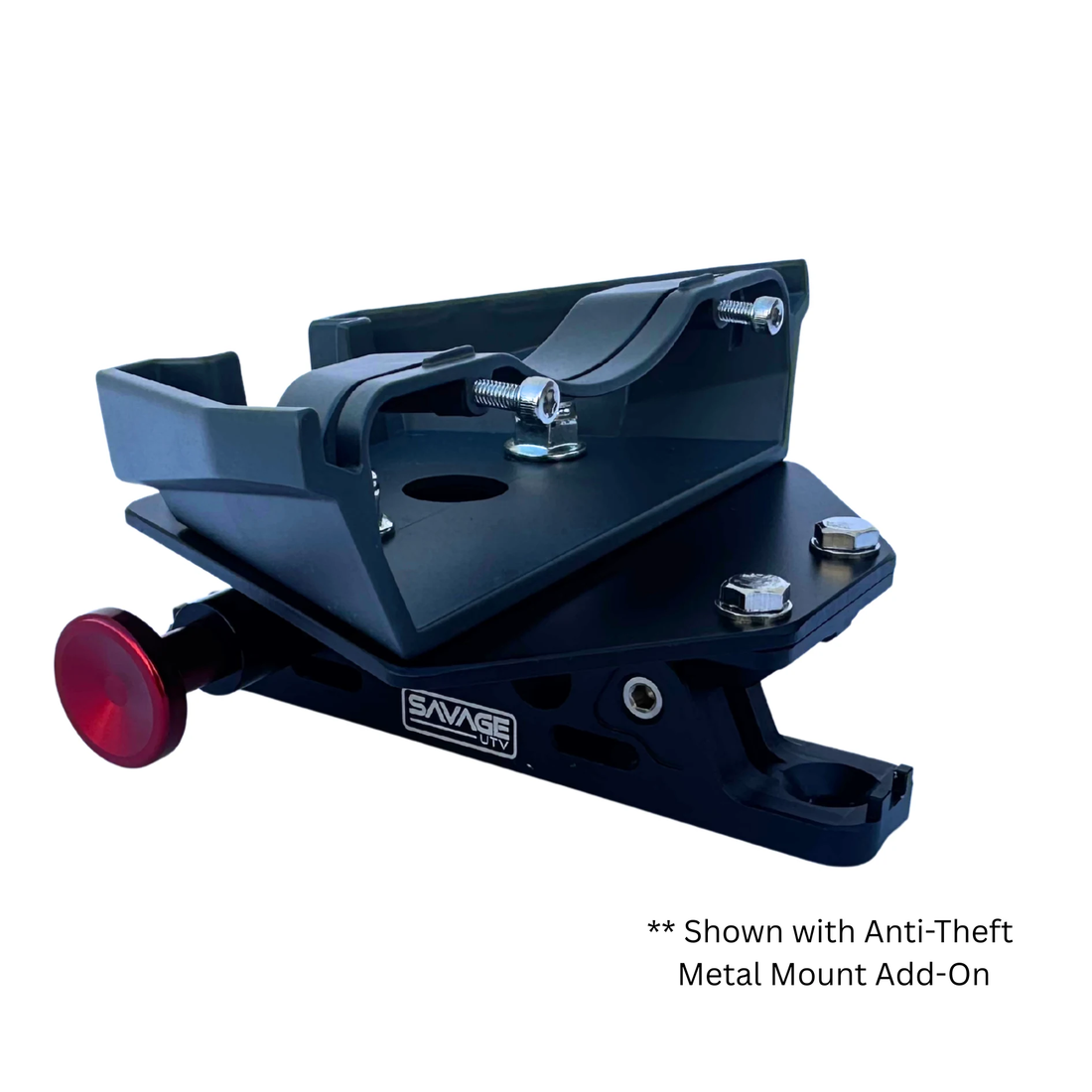

- Options: quick-release cable, lock, metal mount
- Part numbers: 70-01 series, 70-02 series by option
In the box

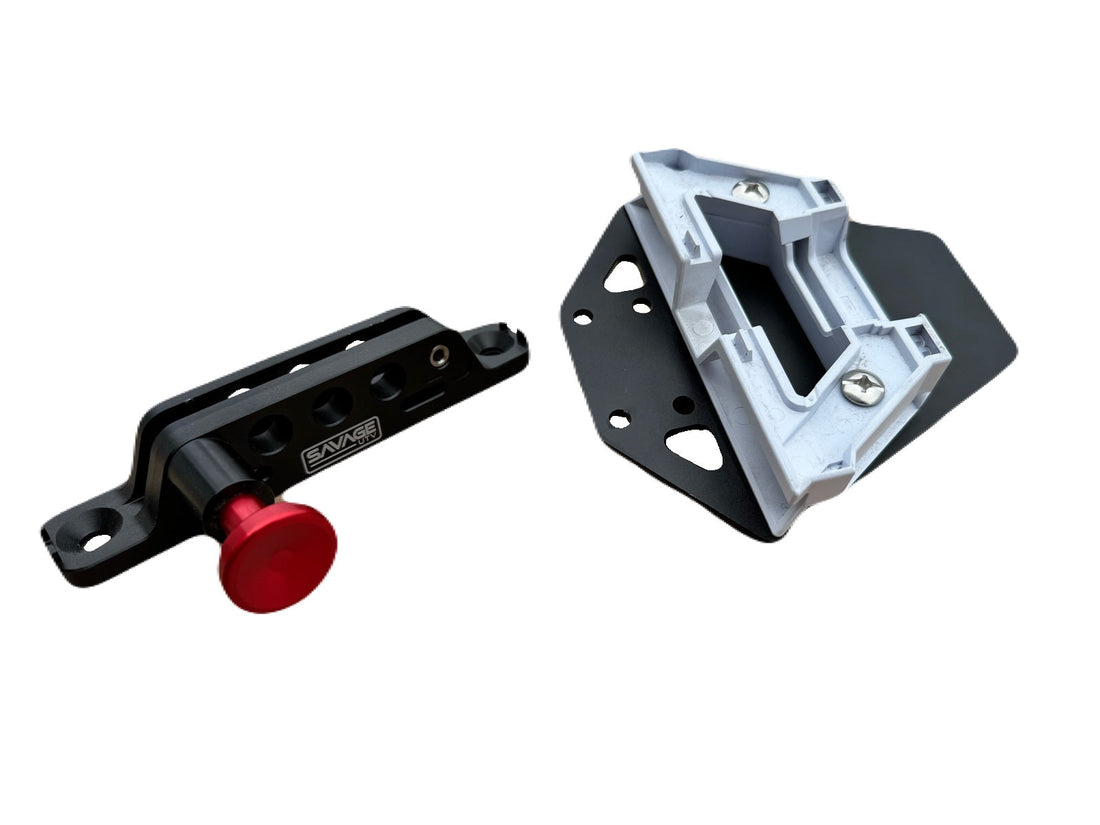

- Upper mount and lower mount
- (2) hose clamps and (2) hose clamp sleeves
- (4) stainless steel bolts for the kickstand
- Drill template
- Options you choose: cable, lock, metal mount
Warranty
Rugged Radios sells this item, and its page does not spell out the warranty terms.
Shipping and returns
Ships by ground parcel to the lower 48 states.
