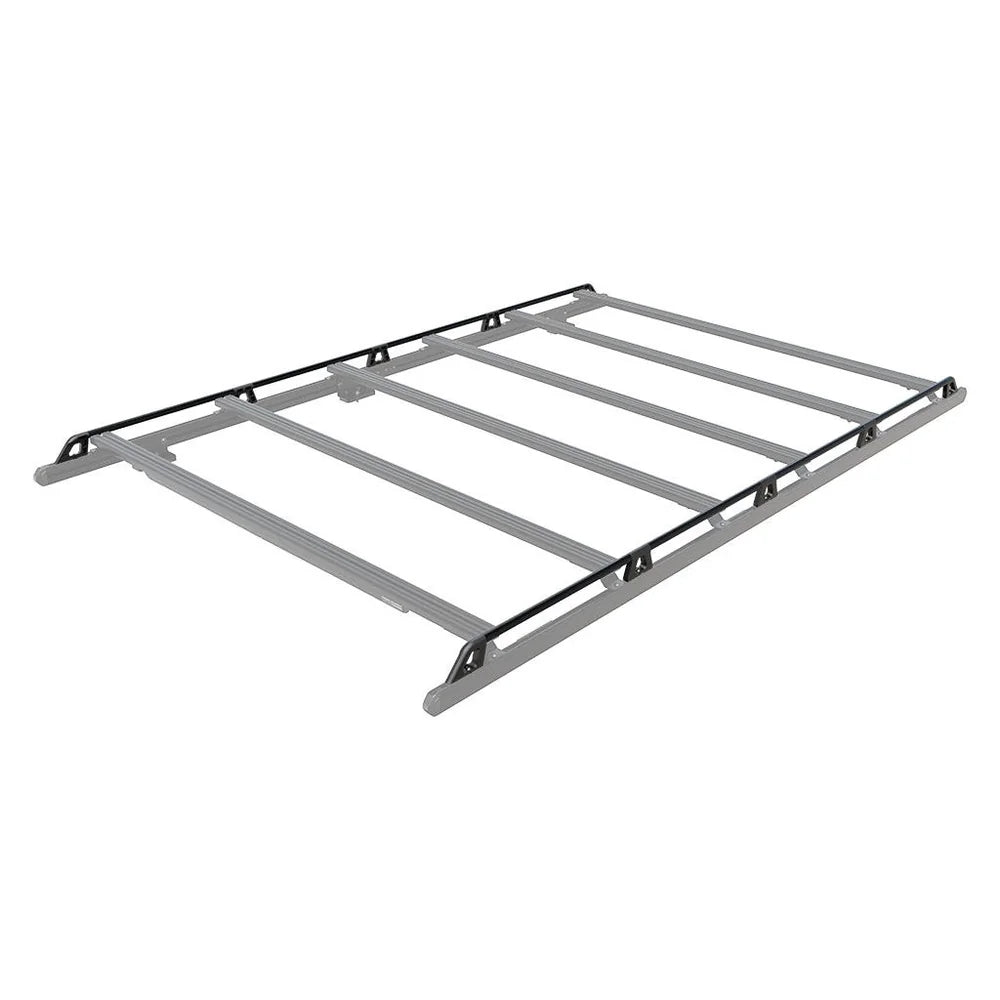

Front Runner Slimpro Van Rack Expedition Rails, 2367 mm

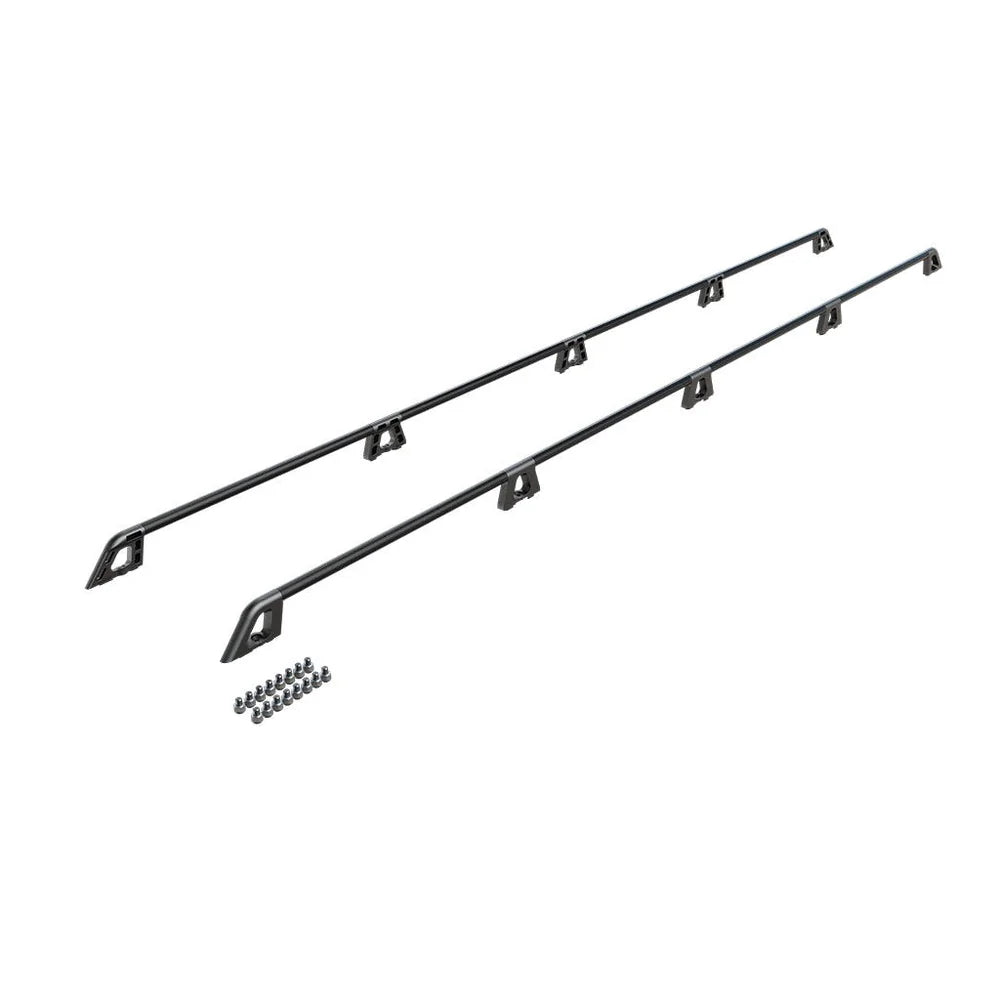

Front Runner Slimpro Van Rack Expedition Rails, 2367 mm, view 2 of 4

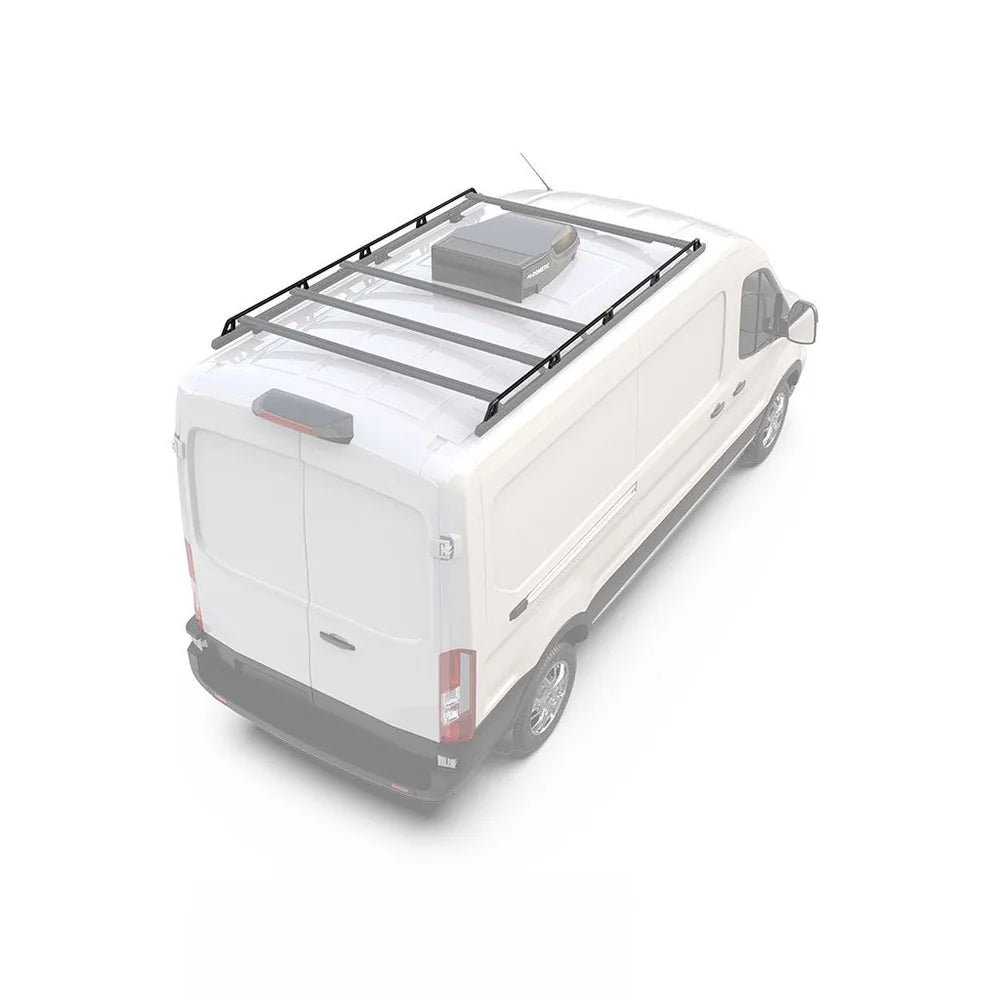

Front Runner Slimpro Van Rack Expedition Rails, 2367 mm, view 3 of 4

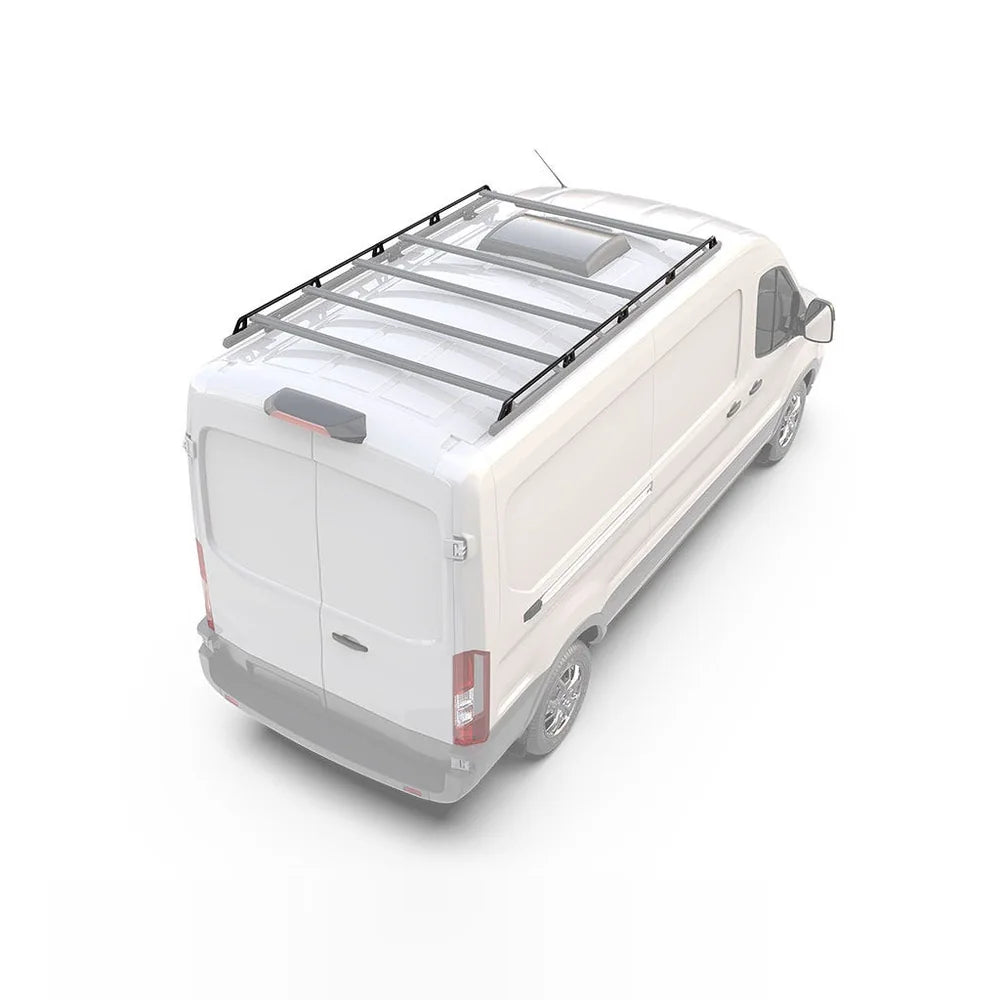

Front Runner Slimpro Van Rack Expedition Rails, 2367 mm, view 4 of 4

Front Runner Slimpro Van Rack Expedition Rails, 2367 mm

$289.00
Free shipping on $199+ Shipping, returns and fit

Fit: Fits a Front Runner Slimpro Van Rack 2367 mm long.

Shipping: Free ground shipping to the Lower 48 on orders of $199 or more. Under $199, the ground rate shows at checkout.

Returns: 30 days on new items in the original packaging. If the item arrived damaged or defective, we sent the wrong item, or our page listed your vehicle and it does not fit, we cover the return shipping and there is no restocking fee. Any other return ships back at your cost.

Why buy from us: Front Runner expedition side rails for a 2367 mm Slimpro Van Rack. Ships by ground parcel, and orders over $199 to the Lower 48 ship free. 30-day returns on unused items in original packaging.

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Description

These Front Runner Slimpro Van Rack expedition rails (KVXS006) are the shorter side-rail kit, built for a Slimpro Van Rack with a 2367 mm (93.2 in) tray. Like the longer kits, they add expedition-style side support while leaving the front and back of the rack open for a canoe, kayak, surfboard, lumber or a ladder. The assembled rail on each side is 2245 mm long (88.4 in). The kit adds 61 mm (2.4 in) to the height of the rack and weighs 4.34 kg (9.6 lb).

Installation takes minutes and needs no drilling. You can unbolt rail sections later if you want the sides open. The powder coat matches the Slimpro Van Rack. Front Runner lists black powder-coated stainless steel and black powder-coated die-cast aluminum, and also describes corrosion-resistant, high-density aluminum components.

Why it works

  • Open ends for long gear on a 2367 mm Slimpro tray
  • Shorter rail length of 2245 mm (88.4 in) per side
  • Installs in minutes, no drilling
  • Adds 61 mm (2.4 in) of height and 4.34 kg (9.6 lb)
  • Eight tubular rails with six mid-joints, plus left- and right-hand drop downs

Fit

This kit is for a Front Runner Slimpro Van Rack with a tray length of 2367 mm (93.2 in). It bolts to that rack, not to the van body. Front Runner's current product page does not name a van model, wheelbase or roof height for these rails. Do not use this kit on a longer or shorter Slimpro tray; other KVXS rail kits cover those lengths.

Order now; we check fit against your vehicle after you order and contact you before it ships if anything doesn't match.

Specs

  • Part number: KVXS006
  • Material: black powder-coated stainless steel and die-cast aluminum
  • Rail size: 2245 mm long by 20 mm wide by 62 mm high (88.4 by 0.8 by 2.4 in), per side; left and right are the same
  • Weight: 4.34 kg (9.6 lb)

In the box

  • 8x tubular rails
  • 2x cast left-hand drop downs
  • 2x cast right-hand drop downs
  • 6x mid-joints
  • Installation hardware

Warranty

Covered by the Front Runner manufacturer warranty.

Source: Front Runner Series Slimpro Van Rack Expedition Rails, 2367 mm (Dometic)

Shipping

Ships by ground parcel to the lower 48 states.

Shipping policy | Refund policy

Shop more Front Runner

Questions

Which rack does the 2367 mm expedition rail kit fit?
Front Runner says this kit works with Slimpro Van Racks that have a tray length of 2367 mm (93.2 in). The rails bolt to the rack, not to the van, and Front Runner's page does not tie the kit to a van model, wheelbase or roof height, so match it to your rack's tray length.
How does the kit go together?
Front Runner ships 8 tubular rails that join with 6 mid-joints, one run per side, and each run ends in cast drop downs (2 left-hand, 2 right-hand). Installation hardware is included, and each finished rail is 2245 mm (88.4 in) long.
Can I still carry a kayak or a ladder?
Yes. The kit adds rails along the sides only, so the front and back of the rack stay open for longer loads like a canoe, kayak, surfboard, lumber or a ladder, per Front Runner.
KVXS006 on a 2367 mm Slimpro tray: weight and added rack height?
Front Runner lists the KVXS006 kit at 4.34 kg (9.6 lb). Bolted to a Slimpro Van Rack with a 2367 mm (93.2 in) tray, these low-profile rails add 61 mm (2.4 in) to the rack's height, and each side runs 2245 mm (88.4 in).
