FJ Cruiser Rear Bumper
$827.99
Description

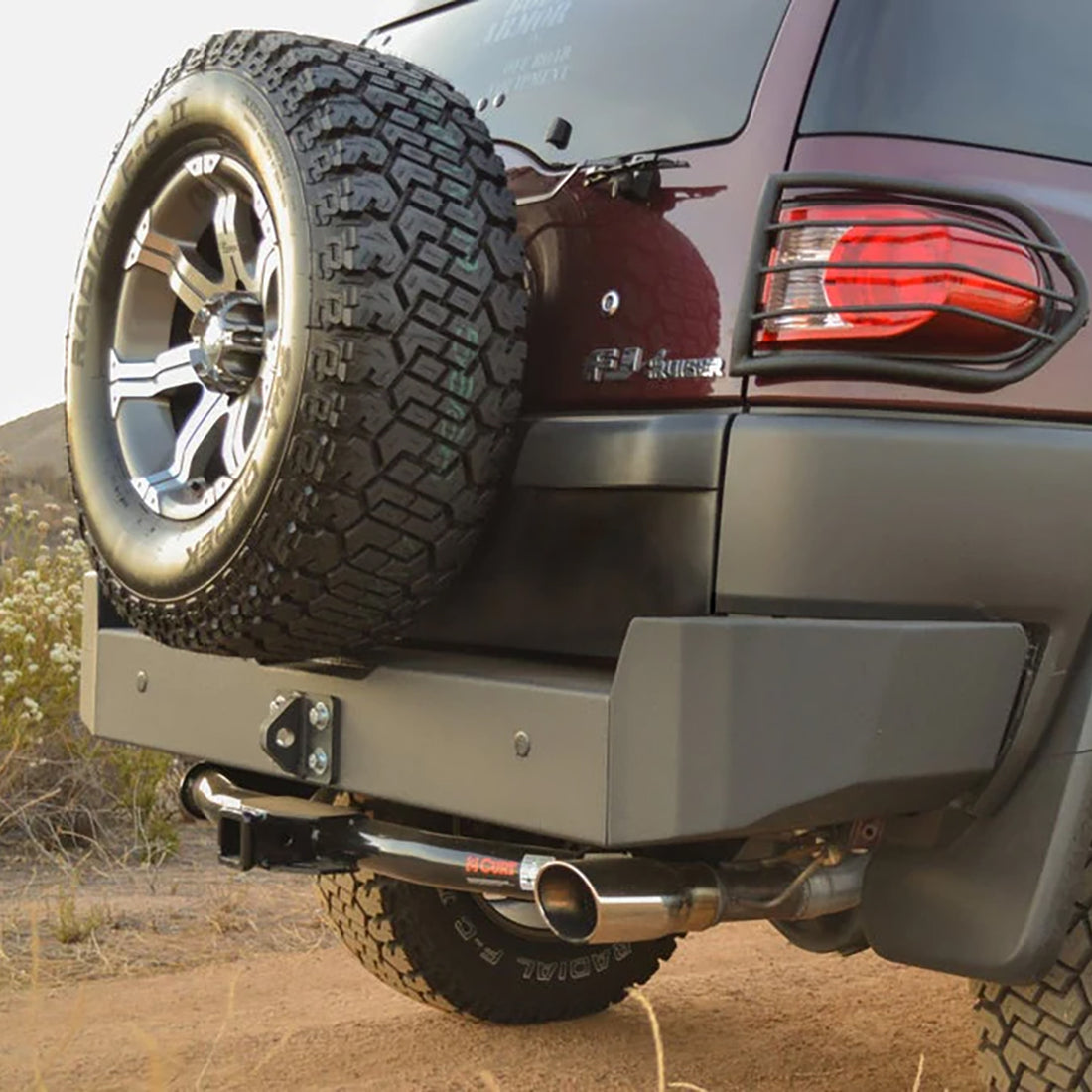

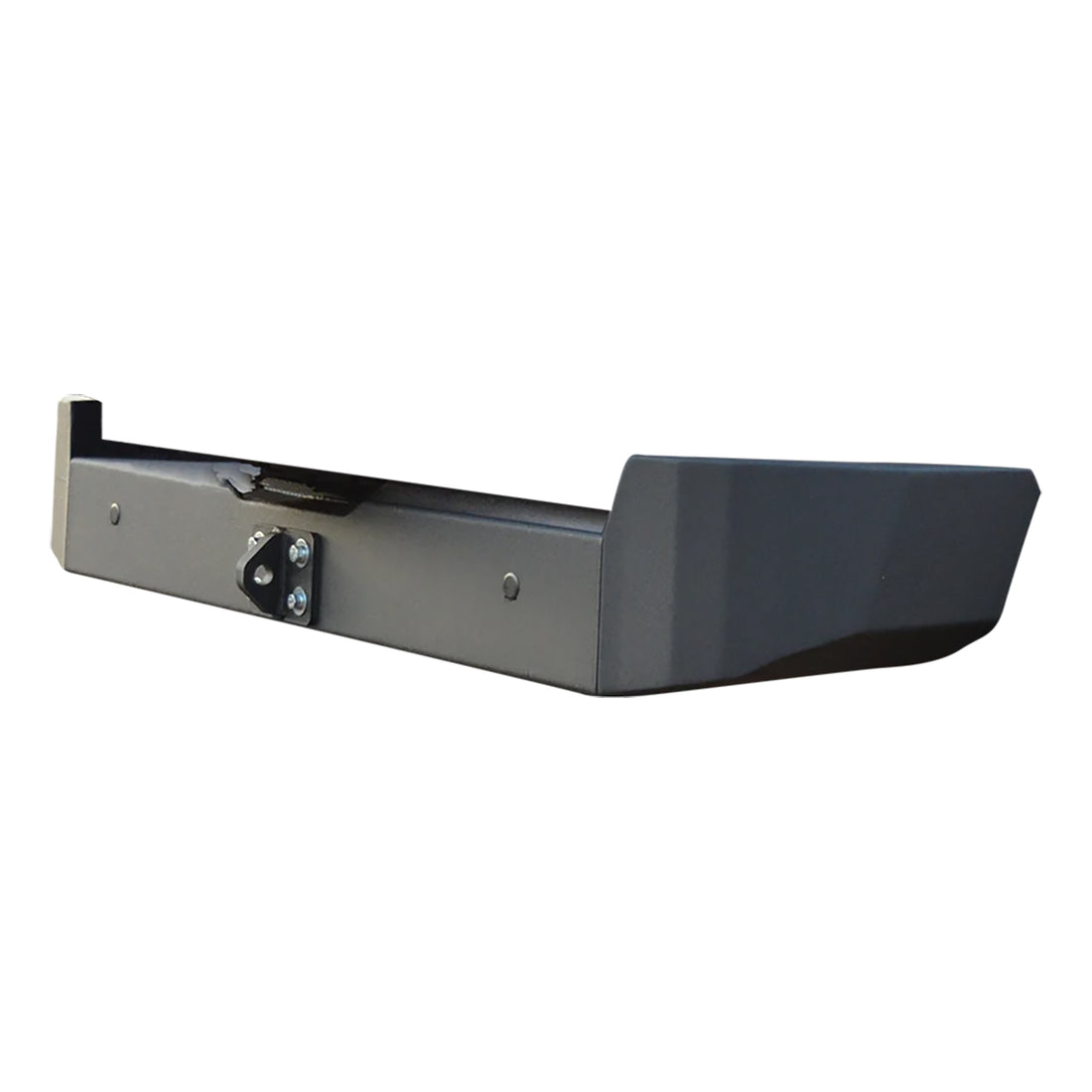

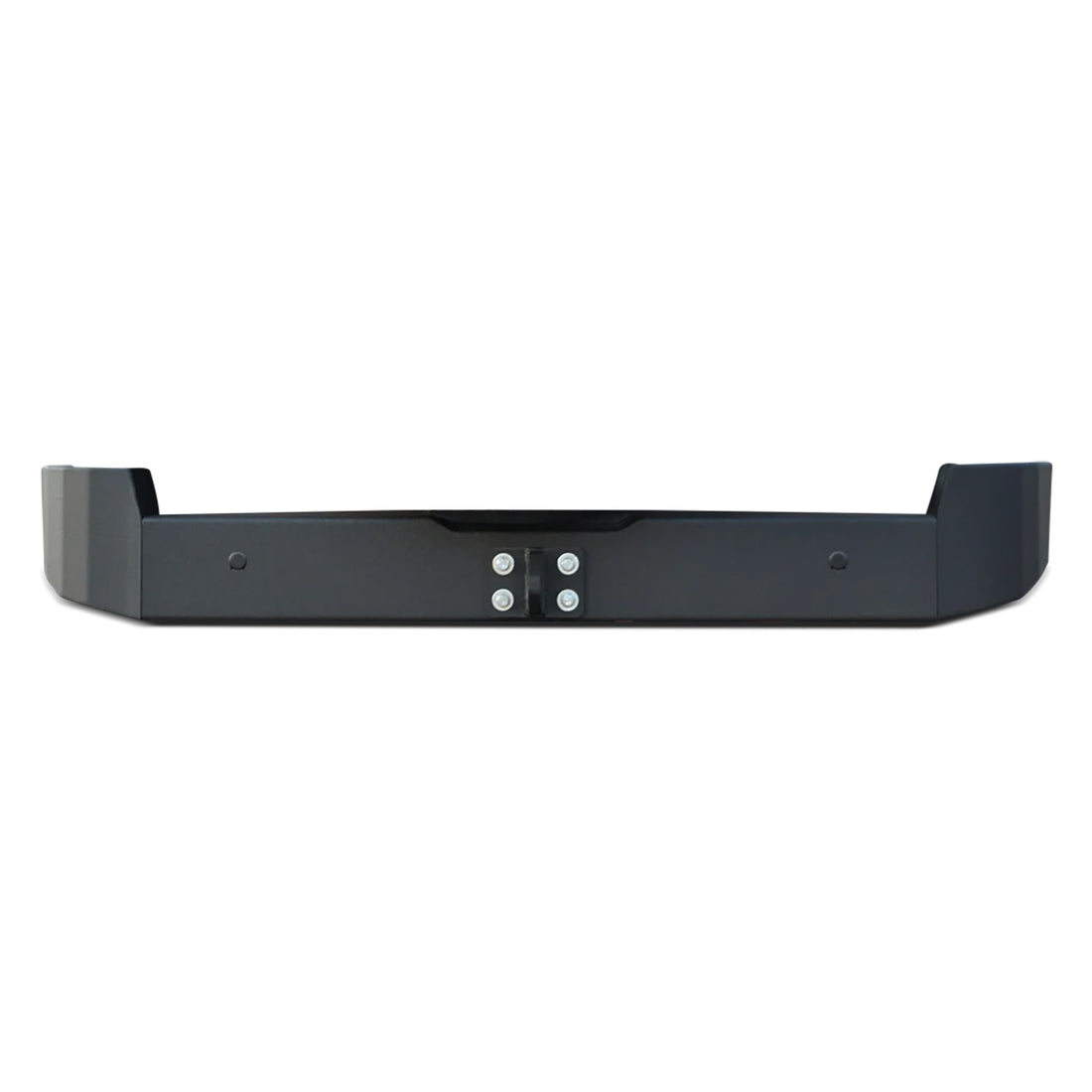

The Body Armor 4x4 FJ Cruiser rear bumper replaces the factory rear bumper on the 2007 to 2014 Toyota FJ Cruiser. It is built from 3/16 in cold rolled steel plate, and Body Armor 4x4 says it is stronger than the OEM bumper.
Why it works
- 3/16 in cold rolled steel plate
- Dual shackle plates tie into the frame brackets
- Allows an aftermarket tow hitch
- Installs at home with hand tools only
- Dual process black powder coat
Fit
Fits: 2007 to 2014 Toyota FJ Cruiser, per Body Armor 4x4.
Order now; we check fit against your vehicle after you order and contact you before it ships if anything doesn't match.
Specs
- Model: FJ-2961 rear bumper
- Construction: 3/16 in cold rolled steel plate
- Recovery: dual shackle plates
- Finish: dual process black powder coat
In the box
- FJ Cruiser rear bumper
- Mounting hardware
Warranty
Covered by the Body Armor 4x4 manufacturer warranty.
Shipping and returns
Ships by truck freight to the lower 48 states.
Questions
Is the FJ-2961 made for every FJ Cruiser model year?
Body Armor 4x4 lists the FJ-2961 rear bumper for the 2007 to 2014 Toyota FJ Cruiser. It replaces the factory rear bumper with a 3/16 inch cold rolled steel plate design that Body Armor 4x4 says is stronger than the OEM part.
Can I run a hitch with the FJ Cruiser rear bumper?
Yes. Body Armor 4x4 designed it to allow an aftermarket tow hitch. Four bolts run up through the bottom of the bumper into the frame, and the guide says spacers may be needed only if you are not installing or do not have an aftermarket hitch. With a hitch in place, no spacers are used.
What happens to the FJ's back up sensors?
Body Armor 4x4's guide has you unplug and save the back up sensors when the factory fascia comes off, then refit them in the cut fascia corner pieces before the bumper goes on the vehicle. The factory Styrofoam center piece is removed and stays out.
How much cutting does the FJ rear bumper need?
Only the plastic corner pieces of the rear fascia, per Body Armor 4x4. You trim them as pictured in the guide, reinstall them with factory hardware and bolt them to the center section with supplied hardware. The guide also asks for a helper to lift the bumper and a hardware recheck after the first couple hundred miles. Body Armor 4x4 calls it an easy at home install with only hand tools.
How do the D ring mounts on the FJ-2961 attach?
Through the frame. Body Armor 4x4 uses dual shackle plates that tie into the frame brackets of the FJ Cruiser. The guide bolts the D ring plate to the bumper and vehicle with M12 bolts, washers and nuts, tightening the under frame bolts first and the center bolts last.
How is the FJ rear bumper finished, and how do I touch it up?
Body Armor 4x4 uses a dual process black powder coat over an E coat undercoating, which it says gives maximum corrosion resistance. For rock chips, Body Armor 4x4 suggests a quality flat black spray paint or automotive touch up paint.
