F-250/F-350 Front Bumper & Brush Guard

$1,749.99
Flat $150 freight shipping Shipping, returns and fit

Fit: Fits 2017-2022 Ford F-250/F-350/F-450/F-550 Super Duty Ambush XT front bumper (non-winch). Retains factory camera; accommodates ACC.

Shipping: Ships by freight to the Lower 48 for a flat $150, added at checkout. This item is not part of the $199 free shipping offer.

Returns: 30 days on new items in the original packaging. If the item arrived damaged or defective, we sent the wrong item, or our page listed your vehicle and it does not fit, we cover the return shipping, freight included, and there is no restocking fee. Any other return ships back at your cost with a restocking fee of 5% of product cost.

Freight deliveries: check the shipment and note any damage on the delivery receipt before you sign. After signing, we cannot accept a return for a change of mind or for damage that was not noted. A fit problem from our listing is still covered.

Why buy from us: Body Armor 4x4 Ambush XT front bumper for the Super Duty. Steel armor that ships by truck freight for a flat $150 freight charge. 30-day returns on unused items in original packaging.

Shipping policyReturn policy

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Not sure it fits your rig? Ask about fit
Description

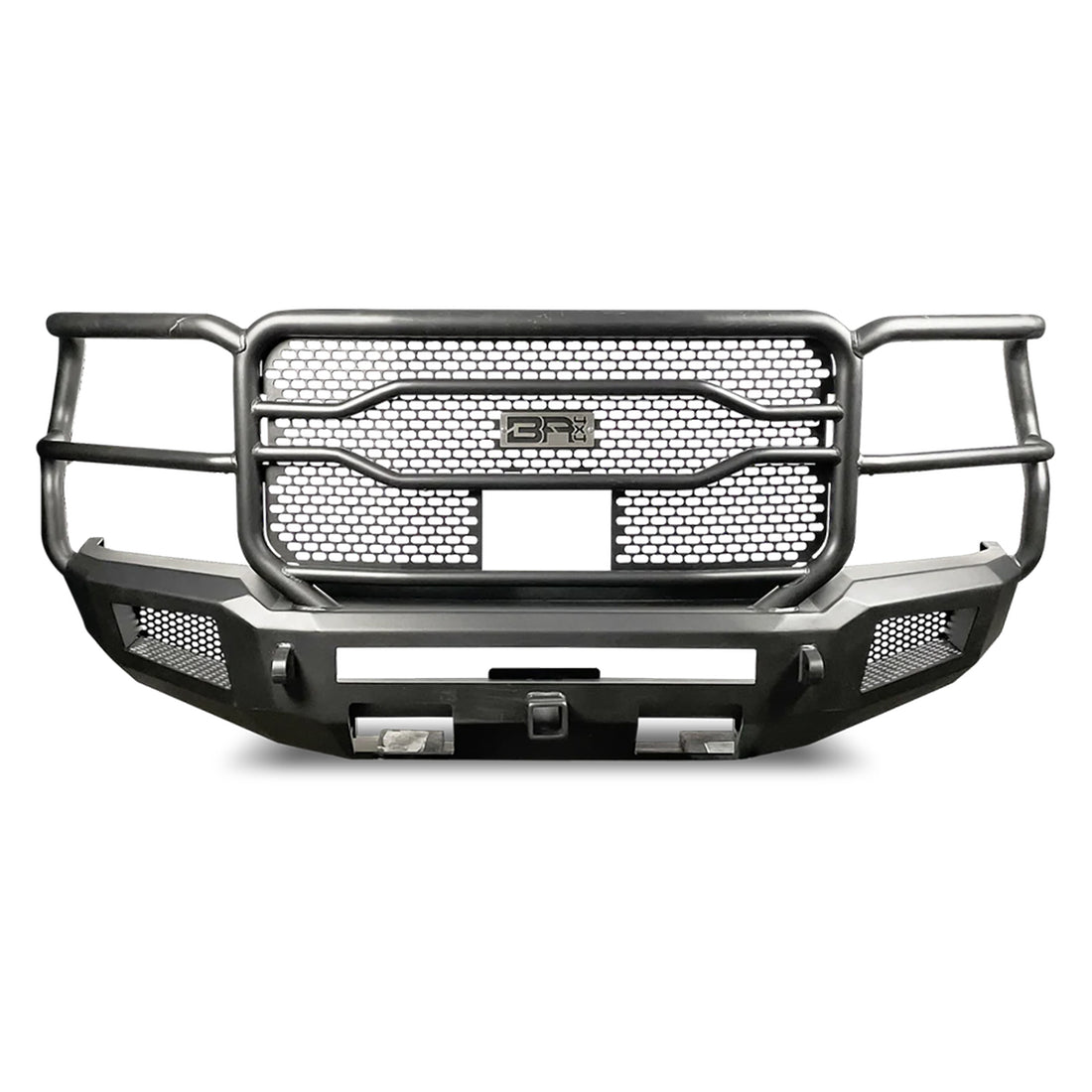

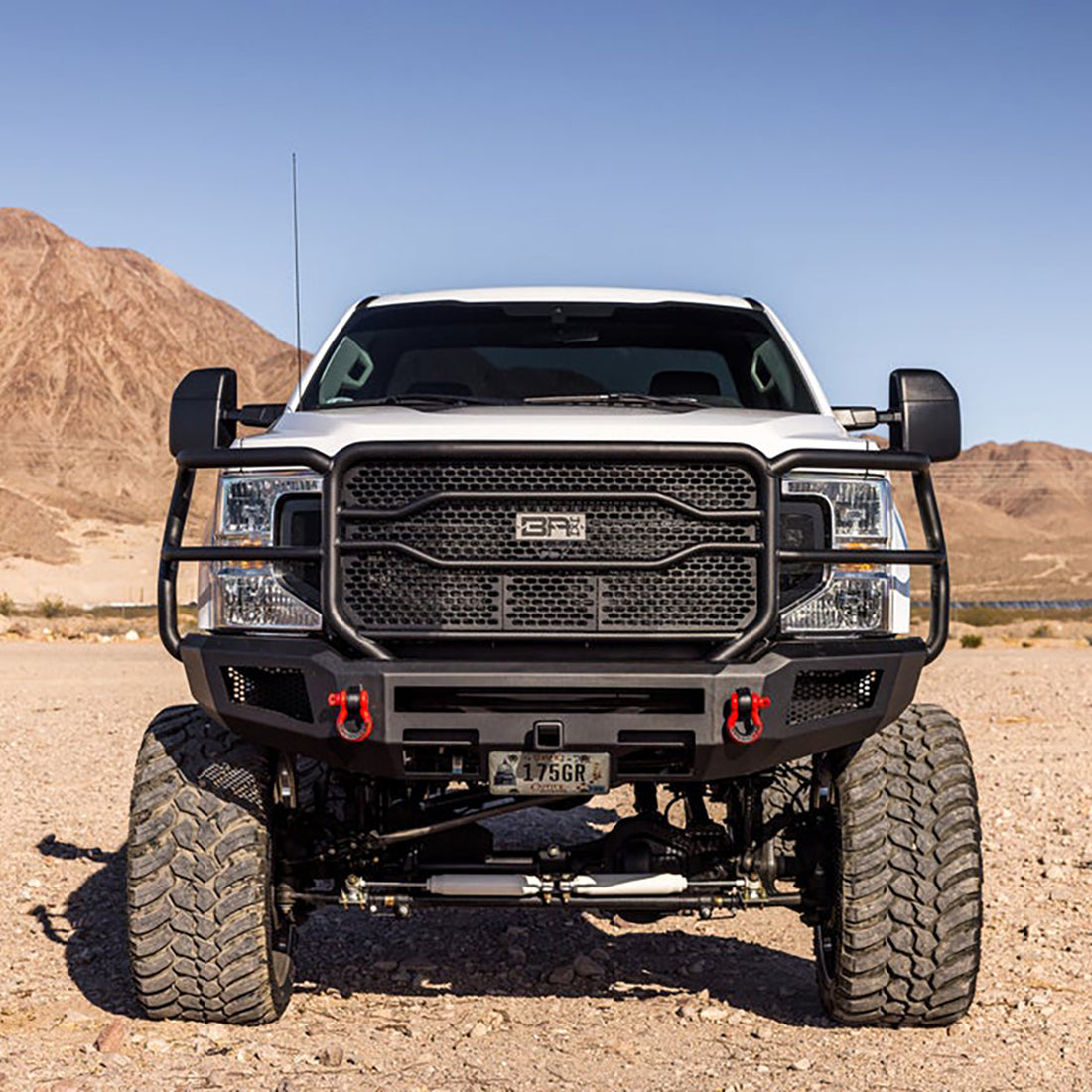

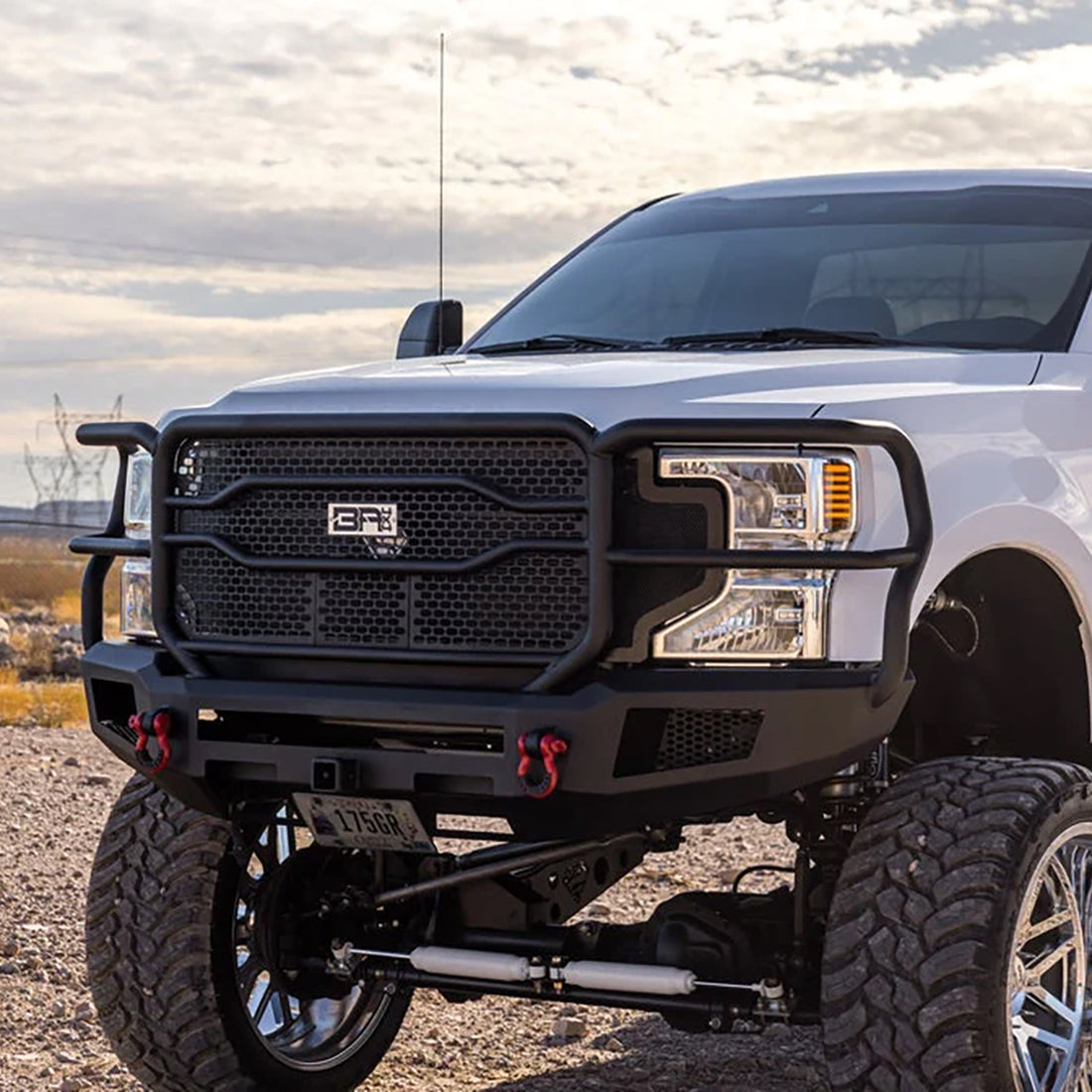

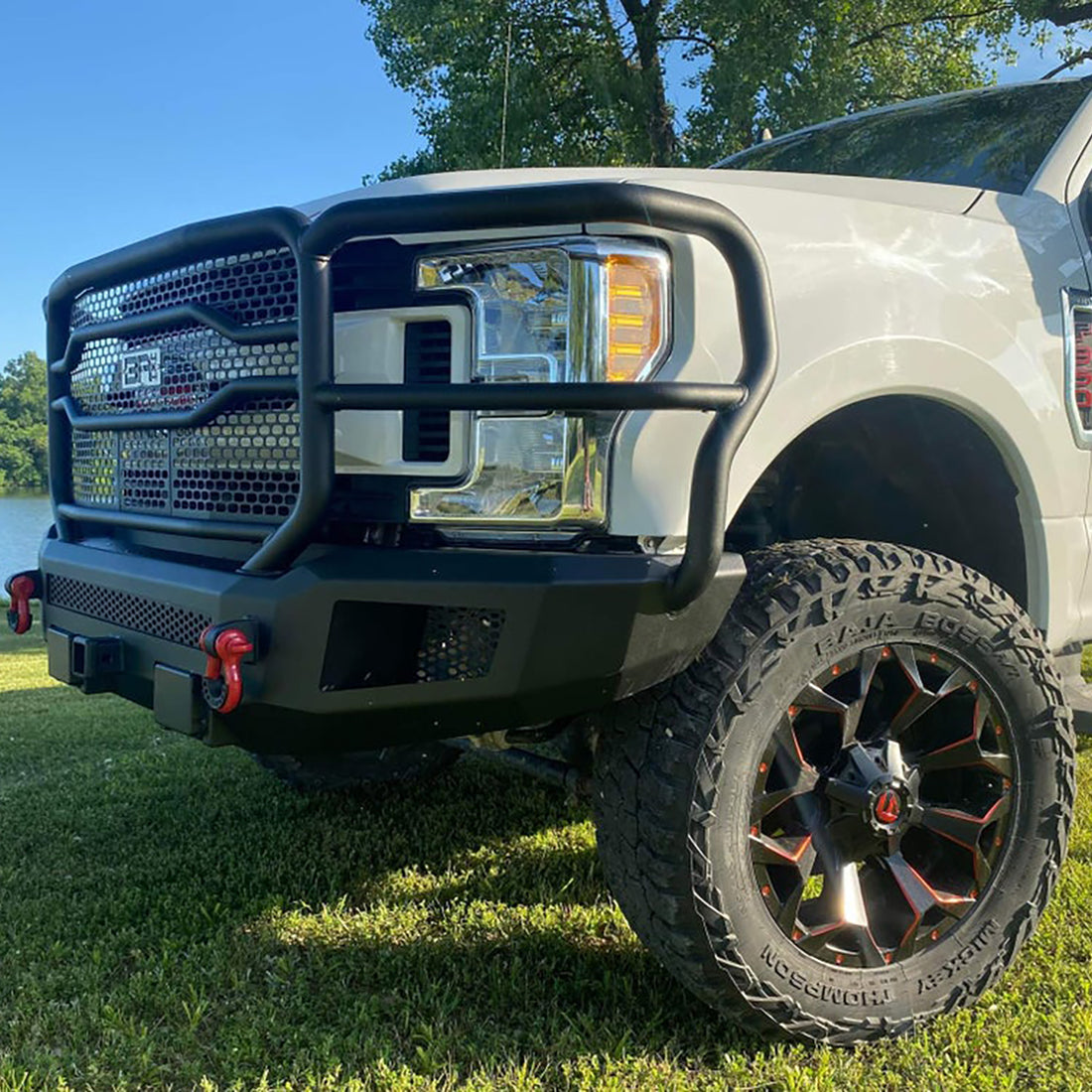

The Body Armor 4x4 Ambush XT front bumper is a one-piece wraparound bumper and brush guard for the 2017 to 2022 Ford Super Duty. Its contours follow the factory body lines while the guard covers the grille and headlights.

It keeps the factory camera and works with adaptive cruise control, and it bolts on. It is a non-winch bumper, so pick it if you want full front protection, lighting mounts and recovery points without a winch.

Why it works

  • One-piece wraparound design protects the grille and headlights
  • Mesh screen allows maximum airflow while protecting vital components
  • Integrated 2 in receiver and shackle recovery mounts
  • Light mounts for a 30 in dual row LED bar and 4 cube LEDs
  • Retains the factory camera
  • Accommodates adaptive cruise control
  • Easy bolt-on installation

Fit

Fits: 2017 to 2022 Ford F-250, F-350, F-450 and F-550 Super Duty, per Body Armor 4x4.

Winch: not winch compatible.

Lights: mounts only. The LED bar and cube lights are sold separately.

Order now; we check fit against your vehicle after you order and contact you before it ships if anything doesn't match.

Specs

  • Part number: FD-20341
  • Style: Ambush XT, non-winch
  • Main tube: 2 in
  • Supporting tubes: 1.25 to 1.5 in
  • Material: 3/16 in and 1/4 in cold roll steel
  • Finish: two-stage light texture black powder coat
  • Recovery: integrated 2 in receiver and shackle mounts
  • Light fitment: 30 in dual row LED bar and 4 cube LEDs

In the box

  • Ambush XT front bumper

Warranty

Body Armor 4x4 lists a limited lifetime warranty for the original purchaser and a 3-year finish warranty from the date of purchase.

Shipping and returns

Ships by truck freight to the lower 48 states.

Shipping policy | Refund policy

Shop more 3rd Gen F-250

Questions

Does the FD-20341 Ambush XT fit an F-450 or F-550?
Yes. Part FD-20341 covers all four Super Duty chassis, the F-450 and F-550 included, on 2017 to 2022 trucks per Body Armor 4x4.
How does the FD-20341 keep adaptive cruise control working?
It moves the ACC sensor onto the bumper. Body Armor 4x4 includes an ACC relocation bracket, a plastic sensor cover and an adapter bracket for the late style sensor with tabs on top and bottom. Trucks without ACC get a cover plate instead. The guide says not to overtighten the 6mm sensor bolts and allows a slight tilt adjustment after a test drive.
Can I put cube lights in the ends of the FD-20341?
Yes. Body Armor 4x4 builds light openings into each end, part of its fitment for 4 cube LEDs plus a 30 inch dual row bar in the center. The lights are sold separately. If a light is tight front to back, the guide says to remove the screen behind the opening. On two light setups, the flood goes in the outer slot and the spot in the inner slot.
Can one person install the FD-20341 bumper?
Body Armor 4x4 says no. Its guide calls the bumper heavy and highly recommends a helper to avoid injury or damage to the truck. The factory bumper sits on blocks or jack stands while its bolts come out, and the new bumper must be fully supported before you attach it to the frame brackets.
Does the FD-20341 mesh guard block airflow to the radiator?
Not by design. Body Armor 4x4 says the mesh screen allows maximum airflow while protecting vital components, and the wraparound guard shields the grille and headlights in one piece. A center mesh fill panel closes the middle opening when you skip the light bar. If your Super Duty has a grille mounted factory camera, the guide has you remove the center screen.
Where do recovery straps attach on the FD-20341?
An integrated 2 inch receiver plus shackle recovery mounts, per Body Armor 4x4. Both are integrated into the bumper itself. This Ambush XT is not winch compatible, so those mounts are its recovery points. Body Armor 4x4 also lists the receiver among the features of the one piece wraparound design, alongside the factory camera retention and adaptive cruise control support.
