18" Blackout LED Light Bar, Single Row
$184.00
Description

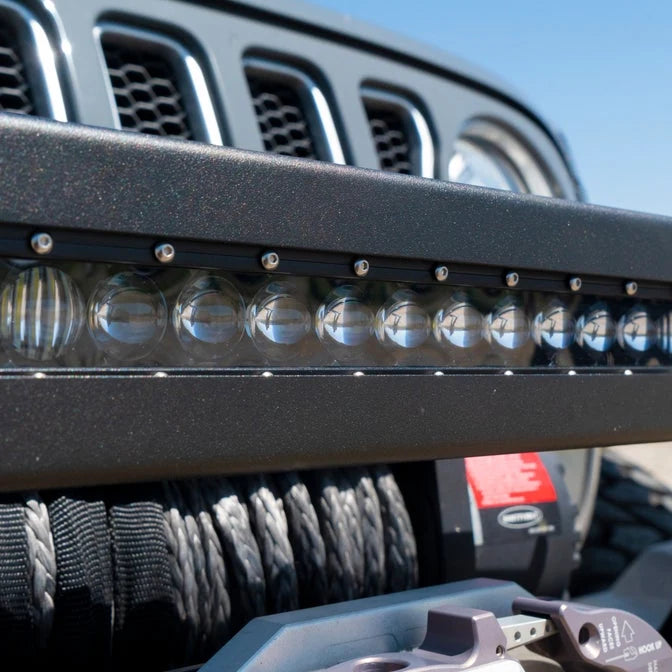

The Body Armor 4x4 18 inch Blackout LED light bar is a single row bar with a combo flood and spot beam. Cree LEDs put out 4,050 lumens, and the black panel background blends into a dark build.

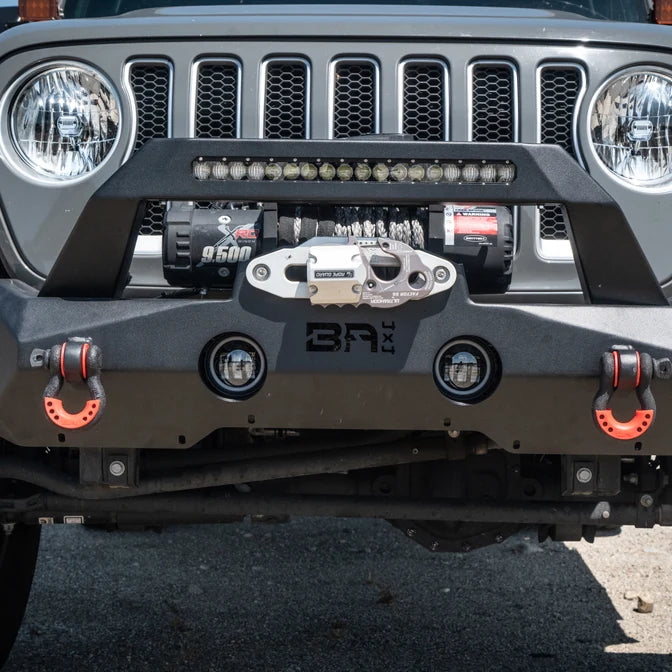

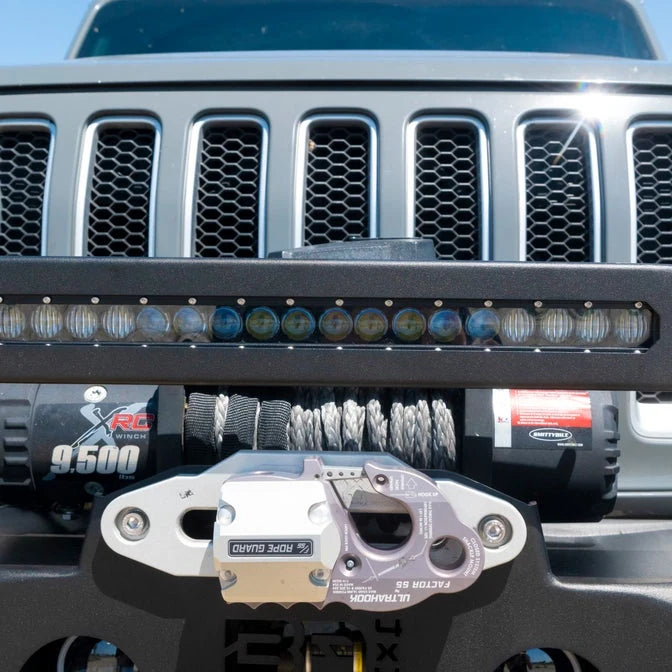

The housing is durable aluminum with an IP67 waterproof rating. Mounting brackets, a wiring harness and a switch come in the box, so you can mount it on a bumper, rack or grille and wire it up.
Why it works
- Single row combo flood and spot beam
- Cree LEDs, 5 W to 90 W, 4,050 lumens
- IP67 waterproof rating
- Durable aluminum housing
- Black panel background
- Mounting brackets, wiring harness and switch included
Fit
Universal. Mounts with the included brackets to bumpers, racks and other mounts that take an 18 in bar. Check clearance and your wiring route before install.
Specs
- Length: 18 in
- Rows: single
- Beam: combo flood and spot
- LEDs: Cree, 5 W to 90 W
- Output: 4,050 lumens
- Rating: IP67
- Housing: aluminum
- Part number: 50020
In the box
- 18 in LED light bar
- Mounting brackets
- Wiring harness and switch
Warranty
Body Armor 4x4 lists a 2 year limited warranty on this light.
Shipping and returns
Ships by ground parcel to the lower 48 states.
Questions
What beam pattern does the 18 in Blackout bar throw?
A single row combo of flood and spot beams, per Body Armor 4X4. The bar uses 5 watt Cree LEDs for 90 watts and 4050 lumens in total, set on a black panel background. Body Armor 4X4 houses it in aluminum with an IP67 waterproof rating.
What comes with the 18 in Blackout light bar?
Mounting brackets, a wiring harness and a switch, per Body Armor 4X4. Its instructions show the harness with a 12V power lead, ground, 30 amp fuse holder, relay, switch harness connector and light connector, and the rocker switch is already connected to the harness.
Does the 18 in bar harness have a fuse and relay built in?
Yes. Body Armor 4X4 says the harness includes an integrated relay and 30 amp fuse, so it is permissible to connect the power lead directly to the positive battery post. You can also tie into a circuit for key on, key off or engine running operation.
Where does the switch for the 18 in bar mount?
Somewhere within reach of the driver, per Body Armor 4X4. The rocker switch is designed to mount in a round hole in a flat panel; if you drill a new hole, take care not to damage anything behind the panel. A connector lets the switch harness unplug from the main harness to route wires through panels and the firewall.
Where should the relay and ground go?
Body Armor 4X4 says the relay usually mounts near the power distribution unit, starter solenoid or another 12V source, fixed to a rigid surface with a sheet metal screw and away from heat. Body Armor 4X4 points to the negative battery terminal for the ground, though a clean metal to metal chassis or engine strap connection also works.
