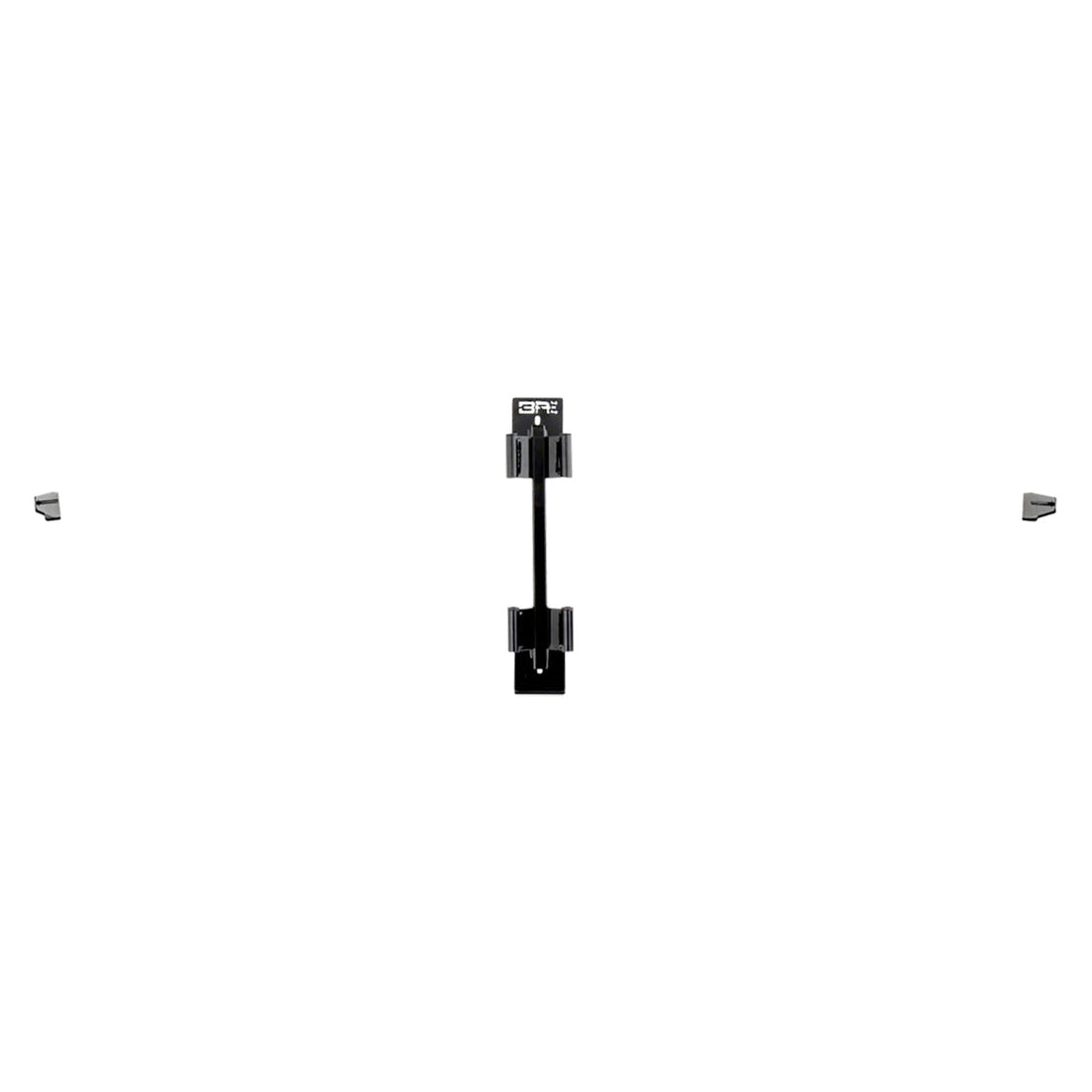

Jeep Door Storage Bar
$144.00
Description
The Body Armor 4x4 door storage bar holds up to two Jeep doors once you take them off, so they stay off the floor and out of the way. It fits Wrangler TJ, JK and JL doors plus the Gladiator JT, factory or aftermarket.
Why it works
- Holds up to two doors
- Works with factory and aftermarket doors
- 1 in square tube and 4 mm steel plates
- Mounting hardware included
- Two-stage gloss black powder coat
Fit
Fits: doors from the 1997 to 2024 Jeep Wrangler TJ, JK and JL and the Jeep Gladiator JT, per Body Armor 4x4.
Specs
- Model: door storage bar, 5145
- Construction: 1 in square tube and 4 mm steel plates
- Capacity: up to 2 doors
- Finish: two-stage gloss black powder coat
In the box
- Door storage bar
- Mounting hardware
Warranty
Covered by the Body Armor 4x4 manufacturer warranty.
Shipping and returns
Ships by ground parcel to the lower 48 states.
Questions
Which Jeeps does the Body Armor door storage bar work with?
Wrangler TJ, JK and JL and Gladiator JT models, per Body Armor 4x4, and it works with both factory and aftermarket doors. The kit includes 12 mm bushings for JK and JL hinge pins and 10 mm bushings for TJ hinge pins, and the hinge brackets bolt into different holes for TJ versus JK and JL.

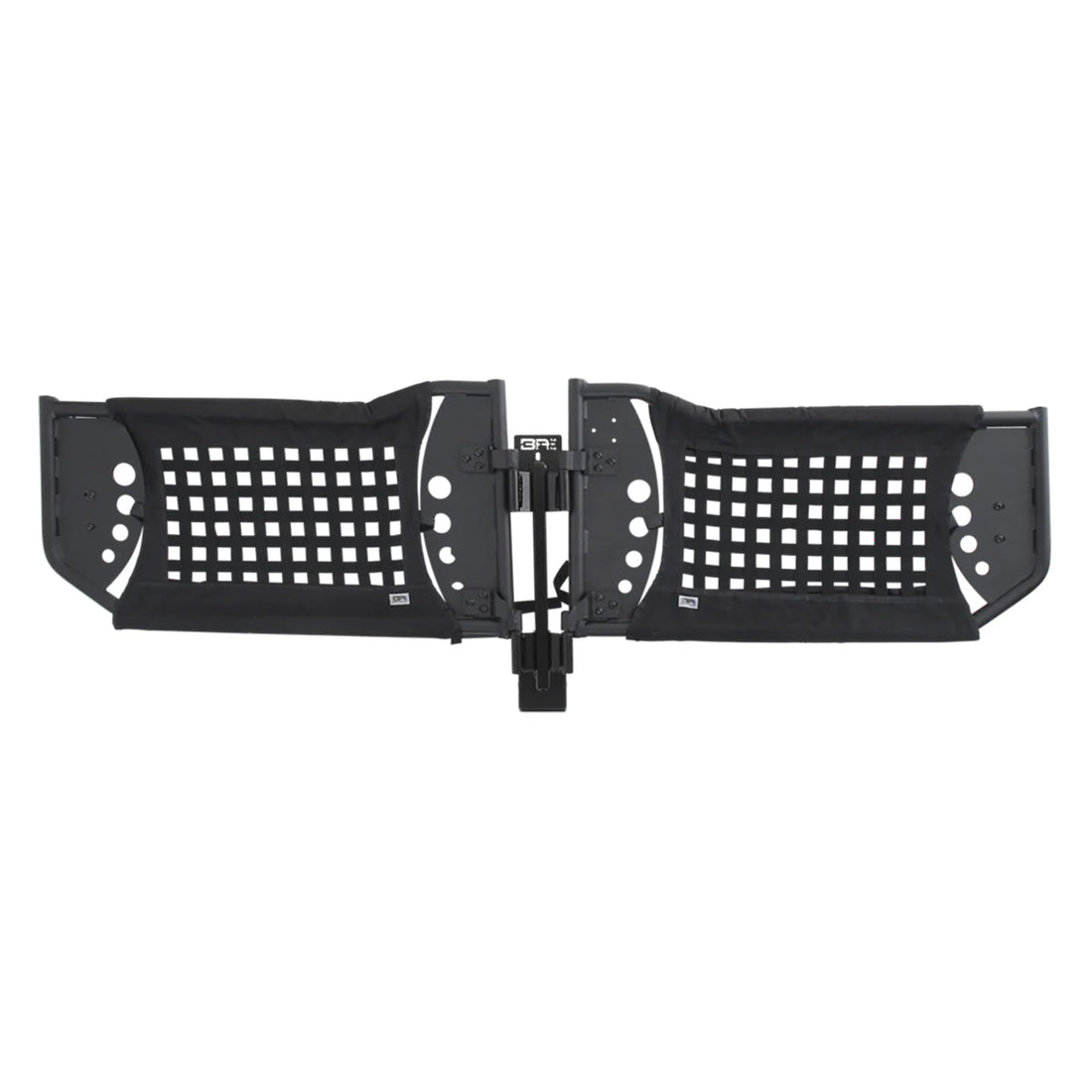

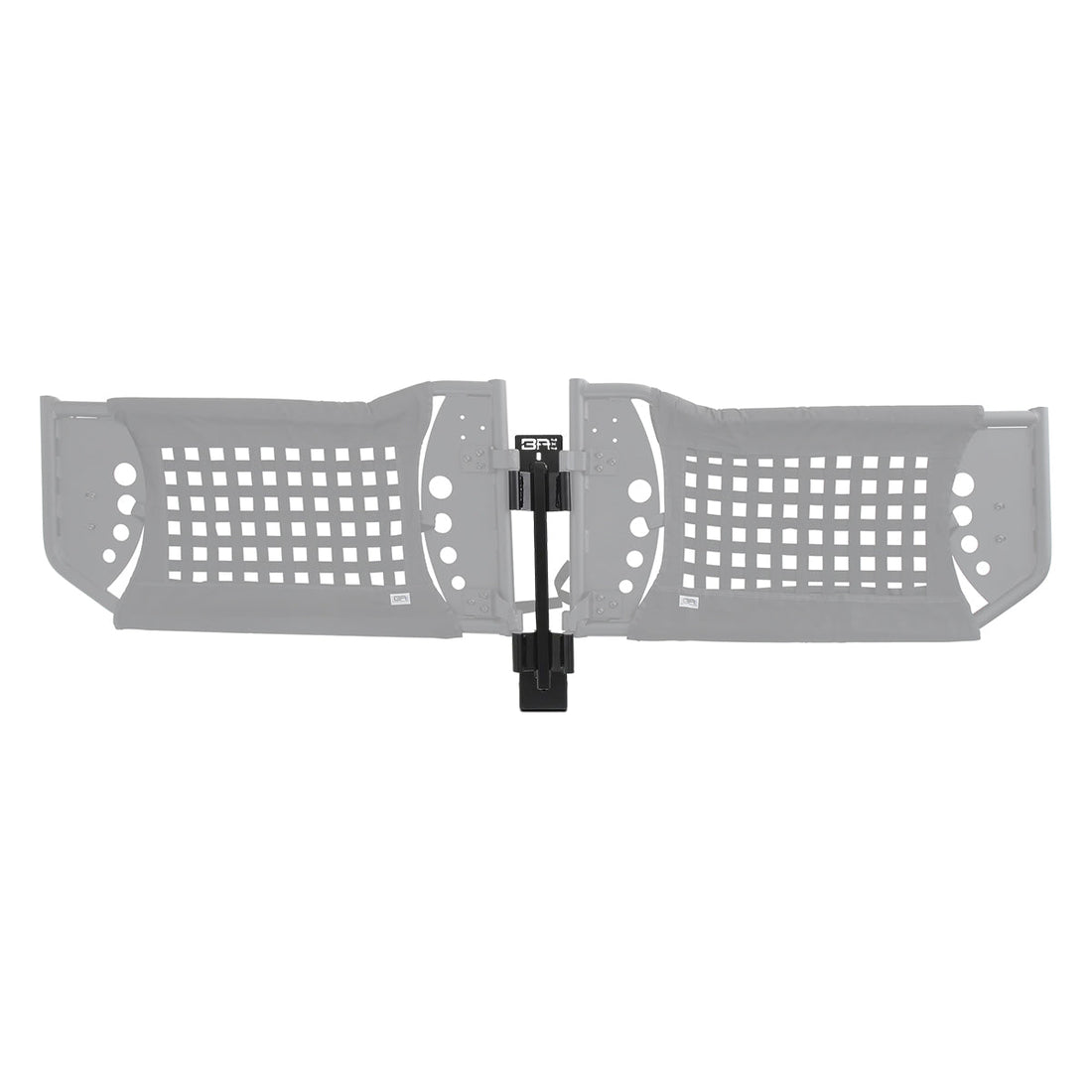

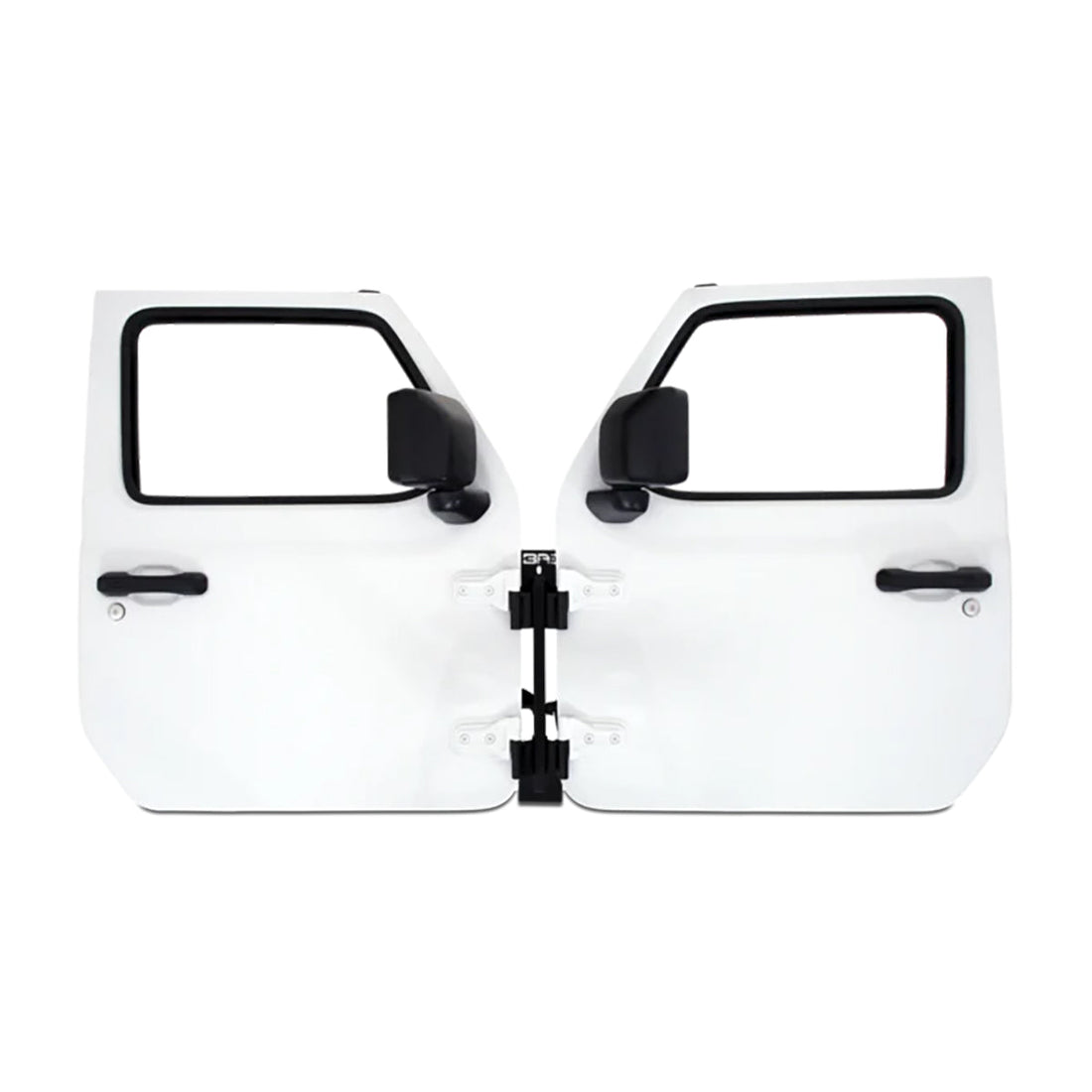

How many doors does the storage bar hold?
Up to two doors, per Body Armor 4x4. Each door hangs by its hinge pins on brackets at the top of the bar, and a striker plate bracket with a standoff pin mounts to the wall to catch the latch side of each door.
Where is the storage bar installed?
To a wall stud, per Body Armor 4x4's instructions. You level the bar, drill pilot holes, and fasten the upper and lower mounting plates with 5/16 in lag screws. The instructions call for a piece of plywood, not included, across the studs behind each striker plate to protect the wall, and say assistance is required.
What steel is the Body Armor bar built from?
1 in square tube and 4 mm steel plates, per Body Armor 4x4, finished in a two-stage gloss black powder coat. Body Armor 4x4 says to inspect the installation periodically so all hardware stays secure and tight. The bar works with both factory and aftermarket doors.

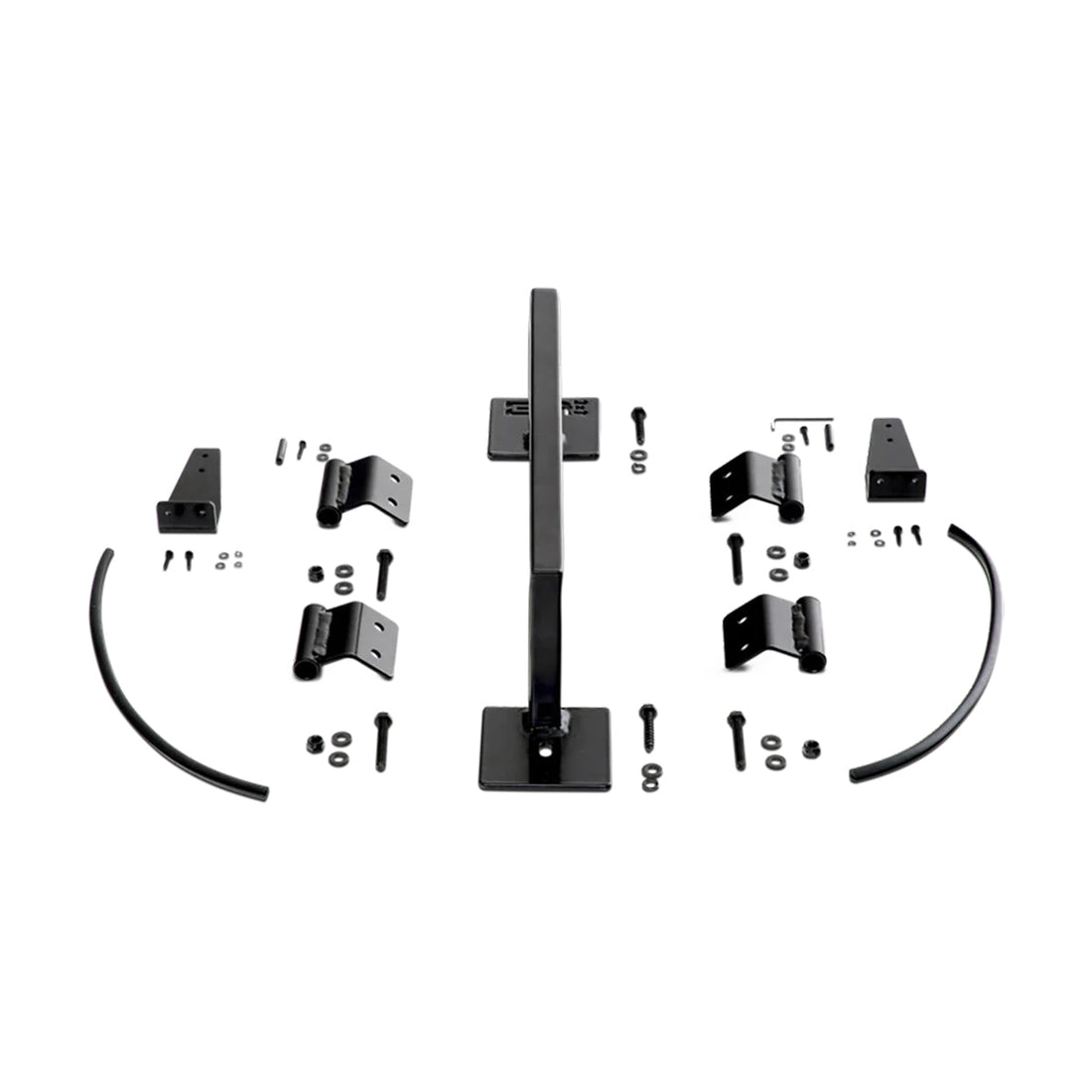

What hardware comes with the storage bar?
Per Body Armor 4x4's parts list, the bar, four hinge brackets, two striker plate brackets, two standoff pins, the TJ and JK/JL bushings, 5/16 in wood screws with washers, 8 mm hex bolts and nylon lock nuts, 4 mm bolts and wood screws with washers, and a 4 mm hex wrench.
