50" light bar

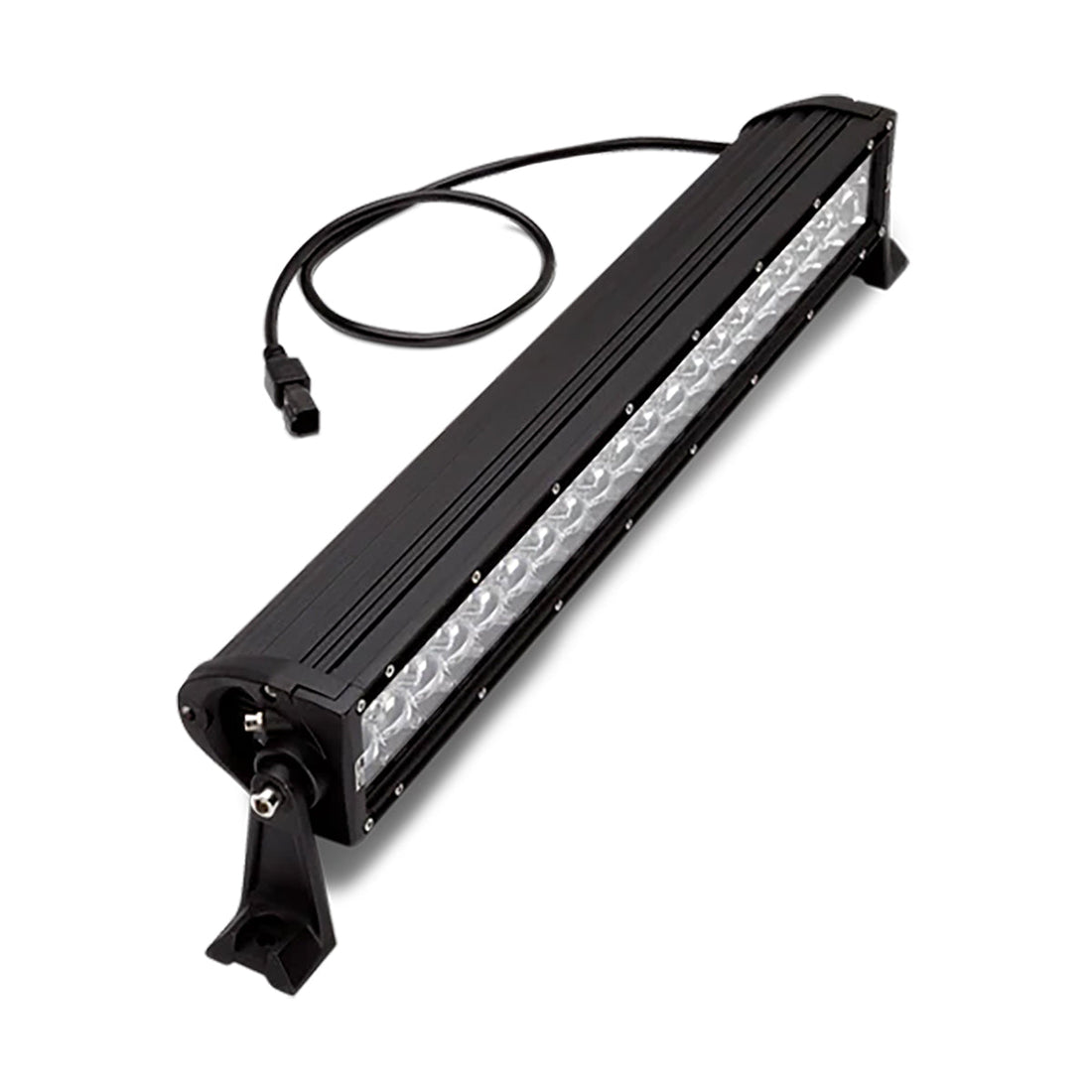

50-Inch LED Light Bar (dual row)

$253.00
Free shipping on $199+ Shipping and returns

Shipping: Free ground shipping to the Lower 48 on orders of $199 or more. Under $199, the ground rate shows at checkout.

Returns: Final sale. No returns or exchanges.

Secure checkout Amazon American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa
Description

The Body Armor 4x4 50 in LED light bar is a combo beam bar for distance and spread. It puts out 288 watts and 20,160 raw lumens from a die cast aluminum housing.

It is IP67 waterproof and comes with a wiring harness and illuminated switch.

Why it works

  • Combo beam
  • 288 watts combined
  • 20,160 raw lumens
  • IP67 waterproof
  • Die cast aluminum housing
  • Wiring harness with illuminated switch included

Fit

Mounting: needs room for a 50 in bar on your roof rack or bumper.

Specs

  • Part number: 40050
  • Length: 50 in
  • Power: 288 W
  • Output: 20,160 raw lumens
  • Rating: IP67
  • Housing: die cast aluminum

In the box

  • 50 in LED light bar
  • Wiring harness with illuminated switch

Warranty

This is a clearance item sold as is. It has no warranty from Body Armor 4x4 or from us.

Shipping and returns

Ships by ground parcel to the lower 48 states.

Final sale. This clearance item cannot be returned or exchanged.

Shipping policy

Shop more light bars

Questions

How bright is the Body Armor 50 in light bar?
It puts out a combined 288 watts and 20,160 raw lumens, per Body Armor 4x4. The bar uses a combo beam, and Body Armor's instructions identify it as part number 40050 in its 4 Series Dual Row LED line. The housing is die cast aluminum.
Can the 50 in bar handle rain and washes?
It carries an IP67 waterproof rating, per Body Armor 4x4, in a die cast aluminum housing. Body Armor also says to mount the included relay upright with its metal mounting hole facing up, which keeps water from sitting near the electrical components.
Does the 50 in light bar need extra wiring?
No. Body Armor 4x4 says the on-board controller and included wiring harness mean the light bar needs no additional wiring or plugs. The harness comes with an illuminated switch, and the black connector plugs into the bar while the red and black power wires run to the battery.
How does the 50 in bar mount?
With the included L brackets and M6 hardware, per Body Armor 4x4. Its instructions say a flat metal surface is recommended, with room for the bar to rotate. You mark and drill holes with a 1/4 in bit using the brackets as a guide, fine tune the angle, then snug the end screws to lock it.
How does the 50 in bar connect to the battery?
With ring terminals, per Body Armor 4x4. The red wire goes to 12V positive and the black wire to 12V negative, or ground. Body Armor says to secure the relay with a screw or zip tie, place the ON/OFF switch somewhere convenient, and keep the harness away from hot or moving parts.
